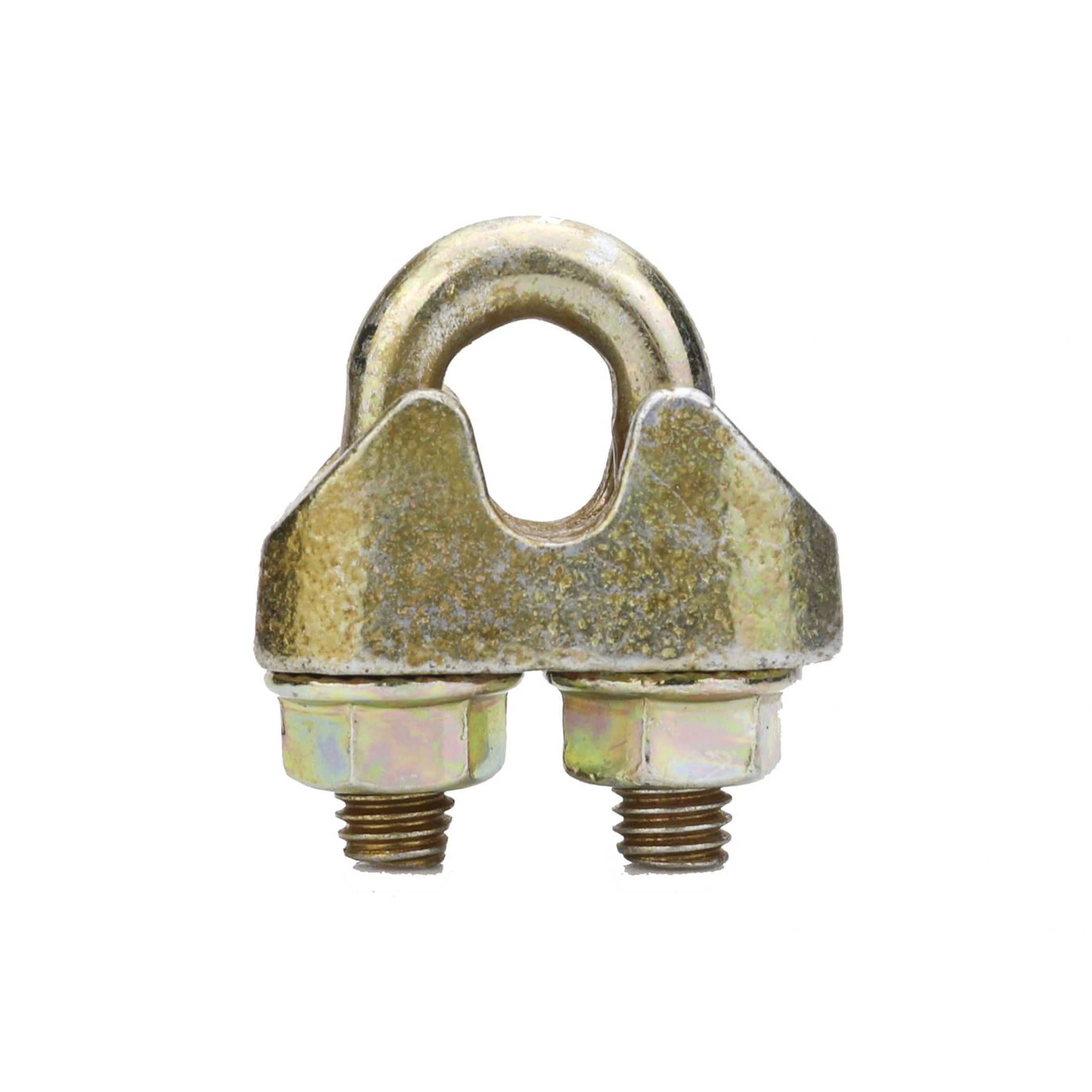

Din1142 & EN13411 Type A.
Mild steel.

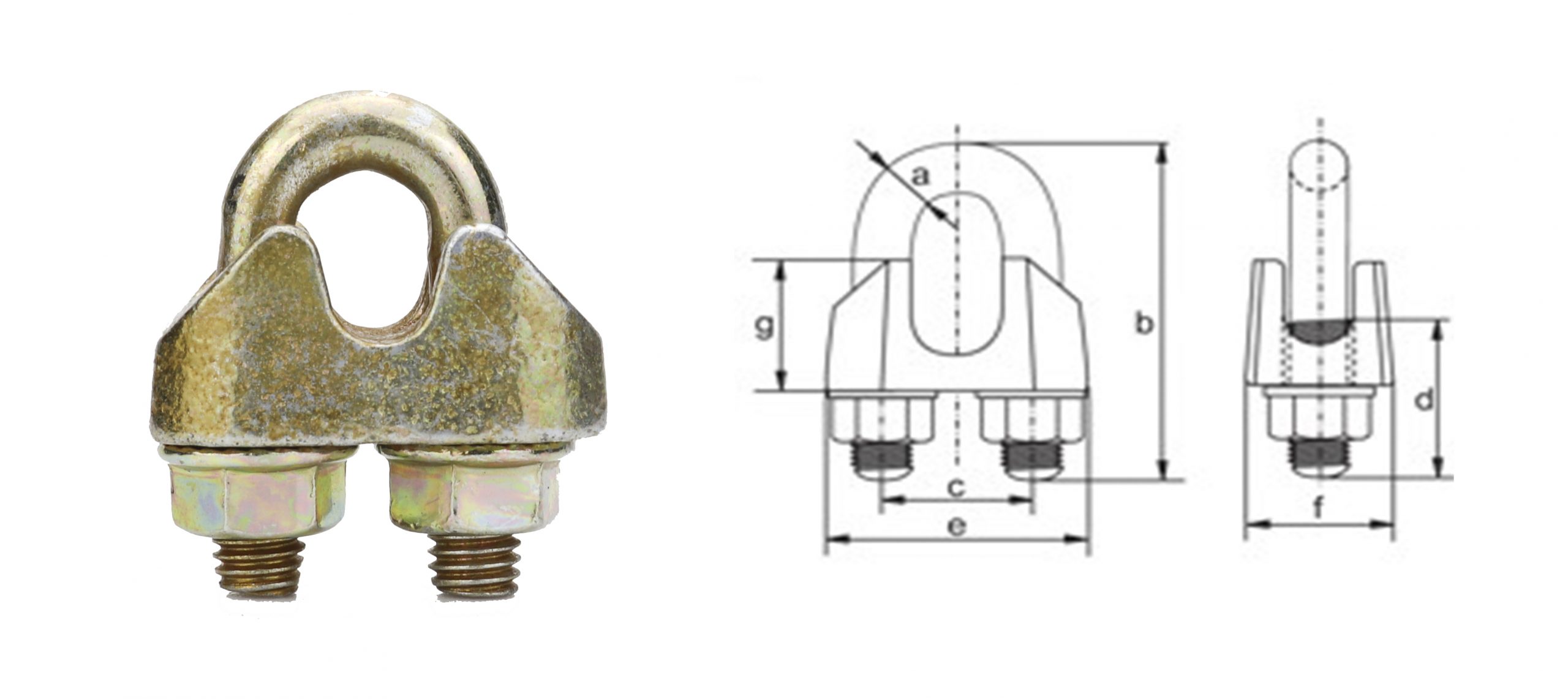

| Size | A | B | C | D | E | F | G | torque | Min. no for clips | Weight |
| mm | mm | mm | mm | mm | mm | mm | mm | Nm | pcs | kg/100pcs |
| 5 | M5 | 25 | 12 | 13 | 25 | 13 | 13 | 2 | 3 | 2 |
| 6.5 | M6 | 32 | 14 | 17 | 30 | 16 | 14 | 3.5 | 3 | 4 |
| 8 | M8 | 41 | 18 | 20 | 39 | 20 | 18 | 6 | 4 | 8.2 |
| 10 | M8 | 46 | 20 | 24 | 40 | 20 | 21 | 9 | 4 | 9.2 |
| 12 | M10 | 56 | 24 | 28 | 50 | 24 | 25 | 20 | 4 | 21.5 |
| 13 | M12 | 64 | 27 | 30 | 55 | 28 | 29 | 33 | 4 | 27.5 |
| 14 | M12 | 66 | 28 | 31 | 59 | 28 | 30 | 33 | 4 | 39.5 |
| 16 | M14 | 76 | 32 | 35 | 64 | 32 | 35 | 49 | 4 | 43 |
| 19 | M14 | 83 | 36 | 36 | 68 | 32 | 40 | 68 | 5 | 49 |
| 22 | M16 | 96 | 40 | 40 | 74 | 34 | 44 | 107 | 5 | 68 |
| 26 | M20 | 118 | 46 | 50 | 84 | 38 | 51 | 147 | 5 | 117 |
| 30 | M20 | 131 | 54 | 55 | 95 | 41 | 59 | 212 | 6 | 140 |
| 34 | M22 | 150 | 60 | 60 | 105 | 45 | 67 | 296 | 6 | 213 |
| 40 | M24 | 167 | 68 | 65 | 117 | 49 | 77 | 363 | 6 | 268 |
1. Conform to Din1142 & EN13411 Type A.
2. Material: mild steel.
3. Finish: yellow chromated.
