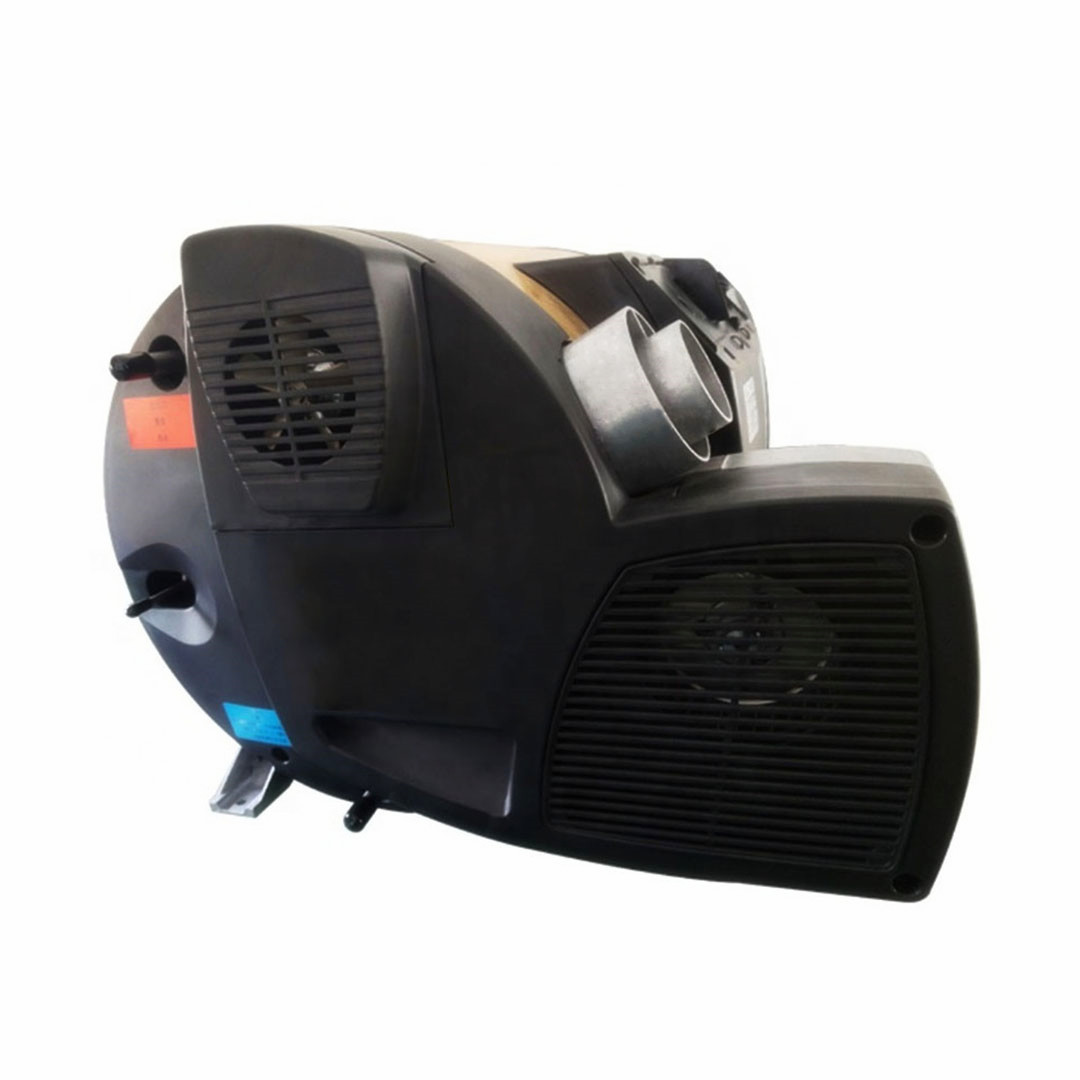

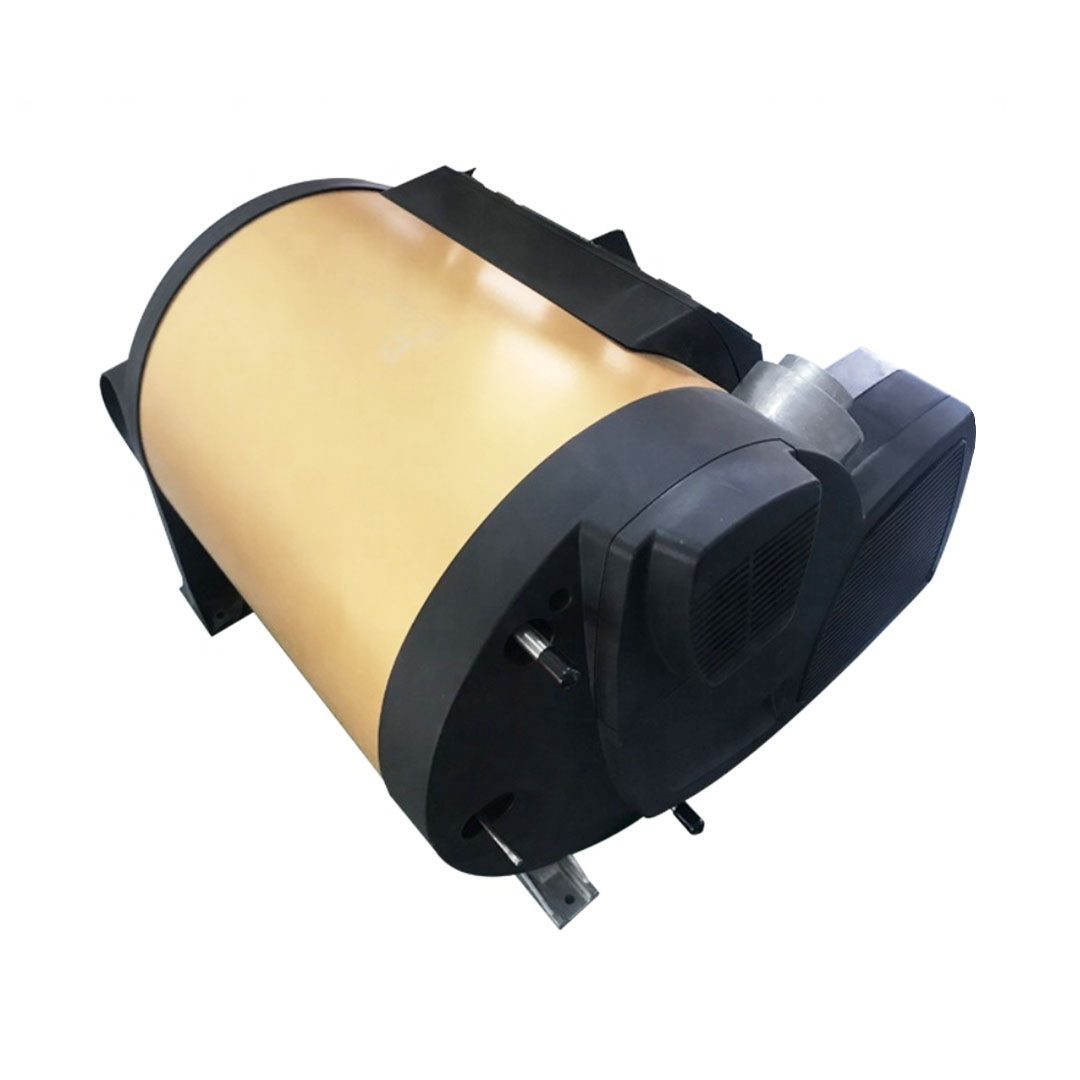

WH-Combi D4E

Water and air integrated heater (Electric and diesel)

Product Details

Electric and diesel



Certification

 CE

Rated Voltage

 DC12V

Operating Voltage Range

 DC10.5V~16V

Short-term Maximum Power Consumption

 8-10A

Average Power Consumption

 1.8-4A

Fuel Heat Power (W)

 2000 / 4000 / 5000

Fuel Consumption (g/H)

 220 / 440 / 550

Quiescent current

 1mA

Warm Air Delivery Volume m3/h

 287max

Water Tank Capacity

 10L

Maximum Pressure of Water Pump

 2.8bar

Maximum Pressure of System

 4.5bar

Rated Electric Supply Voltage

 ~220V/110V

Electrical Heating Power

 900W /1800W

Apply to:

Caravan, Recreational vehicles, Motor homes, Trailers, Camper vans, Trucks, Construction Vehicles, Buses, Agricultural Vehicles, Diesel Vehicles, etc.



Feature:

There are three energy options to choose from:

Diesel Mode: Heater automatic adjust the power; The heater operates at the lowest power. Stop heating immediately after reaching the set temperature.

Electrical Mode: Manually select the 900W or 1800W heating mode according to the power supply capacity of the RV camp site; Manually select the 900W or 1800W heating mode according to the power supply capacity of the camp site.

Hybrid Mode: When the power demand is low (for example, maintaining the room temperature stage), the electrical heating is preferred. Until the city electricity cannot meet, the diesel heating is started, and the diesel heating function is turned off first in the power adjustment phase. In hot water working mode,gas mode or electrical mode is used to heat the tank. The tank temperature can be set to 40°C or 60°C.
