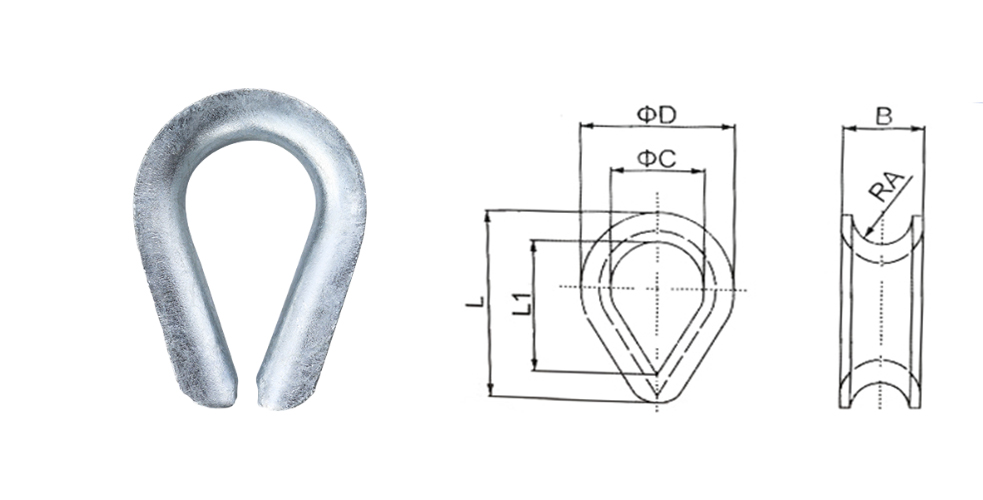

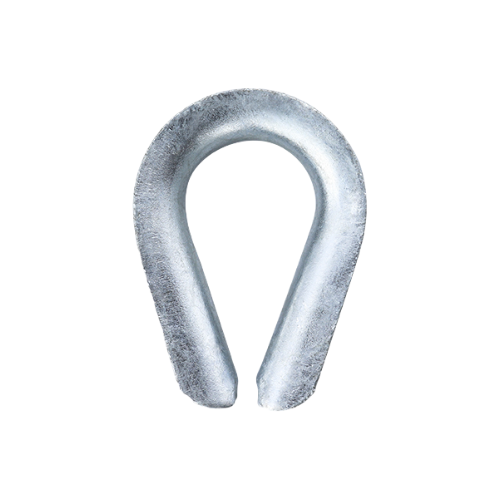

| SIZE | L | L1 | RA | B | ΦC | ΦD | Weight |
| mm | mm | mm | mm | mm | mm | kg | |
| 1/4 | 56 | 41 | 3.5 | 10.4 | 22 | 38 | 0.034 |
| 5/16 | 64 | 48 | 4.3 | 12.7 | 27 | 46 | 0.06 |
| 3/8 | 73 | 54 | 5.2 | 15.7 | 28.7 | 54 | 0.11 |
| 7/16 | 83 | 60 | 6 | 19 | 32 | 60 | 0.16 |
| 1/2 | 92 | 70 | 6.7 | 21.7 | 38 | 70 | 0.23 |
| 9/16 | 92 | 70 | 7.5 | 23.4 | 38 | 68 | 0.23 |
| 5/8 | 108 | 84 | 8.4 | 25.4 | 44 | 79 | 0.34 |
| 3/4 | 127 | 95 | 9.9 | 31.5 | 51 | 97 | 0.67 |
| 7/8 | 140 | 108 | 12 | 35 | 57 | 108 | 0.83 |
| 1 | 156 | 114 | 13.5 | 39.7 | 63.5 | 125 | 1.36 |
| 1.1/8-1.1/4 | 178 | 130 | 17 | 48 | 73 | 149 | 1.4 |
| 1.1/4-1.3/8 | 230 | 165 | 18 | 55 | 89 | 172 | 3.78 |
| 1.3/8-1.1/2 | 230 | 165 | 21 | 62 | 89 | 178 | 5.44 |
| 1.5/8 | 286 | 203 | 22 | 66 | 102 | 207 | 7.37 |
| 1.3/4 | 310 | 229 | 24 | 69 | 114 | 210 | 8.16 |
| 1.7/8-2 | 384 | 305 | 27 | 75 | 153 | 260 | 10 |
| 2.1/4 | 430 | 340 | 30 | 94 | 178 | 302 | 19 |
| 2.1/2 | 450 | 350 | 35 | 110 | 190 | 320 | 25.23 |
| 2.5/8 | 460 | 366 | 37 | 114 | 200 | 334 | 28 |
| 2.3/4 | 515 | 425 | 39 | 118 | 210 | 348 | 30.6 |
| 3 | 550 | 445 | 42 | 124 | 210 | 354 | 33.9 |
| 3.1/2 | 555 | 445 | 47.5 | 135 | 245 | 395 | 40 |
1.Conform to Federal Spec. FF-T-276B.
2.G414 heavy duty type.
3.Material: mild steel.
4.Finish: Hot dip galvanized.
