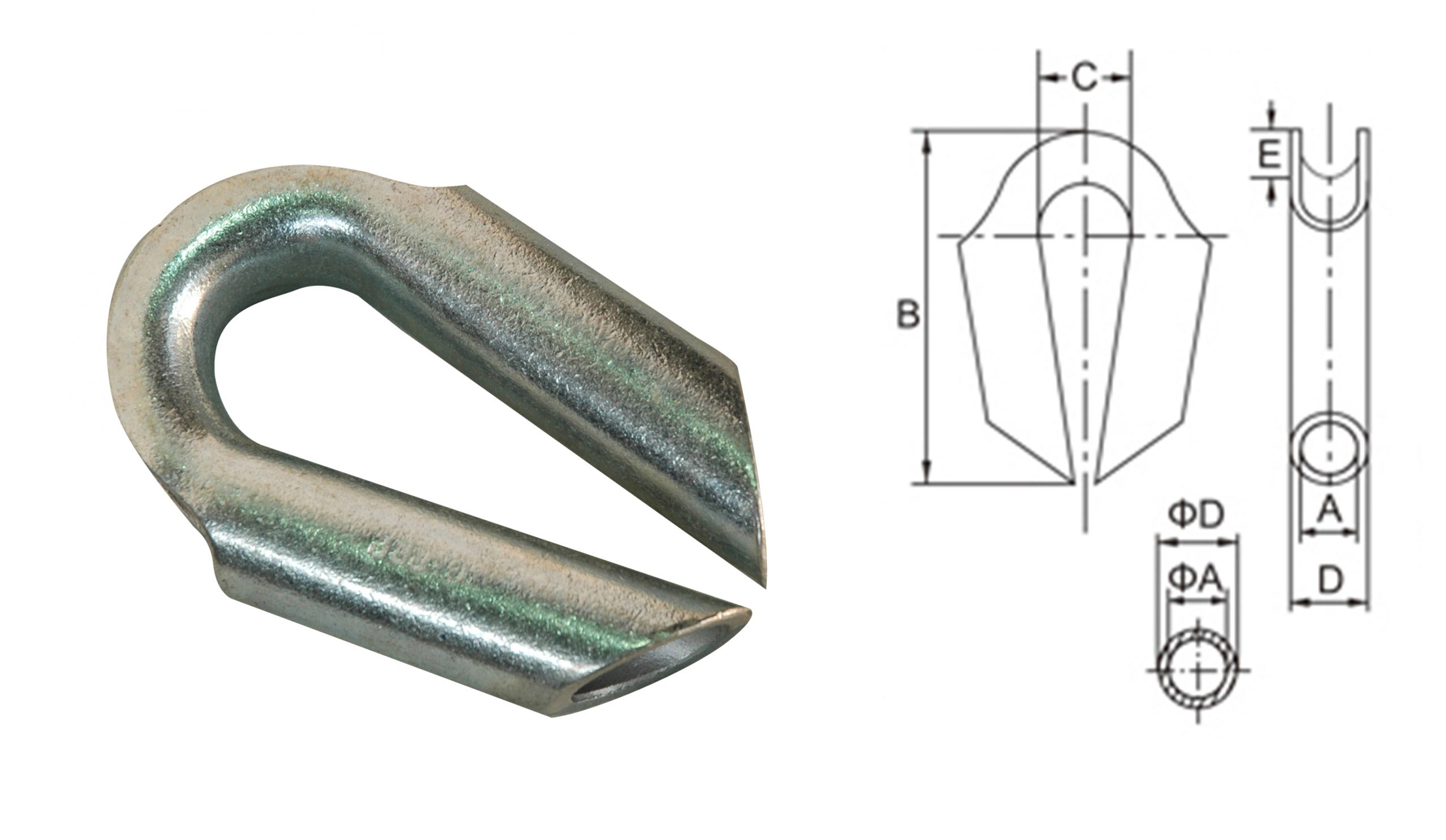

| SIZE | For rope dia | A | B | C | D | E | Weight |
| mm | mm | mm | mm | mm | mm | kg/100pcs | |
| G212 | 10 | 12 | 90 | 23 | 20 | 8 | 0.24 |
| G215 | 12 | 15 | 105 | 27 | 25 | 10 | 0.41 |
| G217 | 14 | 17 | 115 | 27 | 25 | 10 | 0.39 |
| G219 | 16 | 19 | 120 | 32 | 29 | 12 | 0.60 |
| G222 | 18 | 22 | 140 | 35 | 32 | 15 | 0.75 |
| G225 | 22 | 25 | 180 | 45 | 37.6 | 16 | 1.40 |
| G228 | 24 | 28 | 180 | 45 | 42 | 16 | 1.75 |
| G230 | 26 | 30 | 195 | 47 | 44 | 18 | 2.2 |
| G235 | 32 | 35 | 215 | 60 | 49 | 22 | 2.6 |
| G240 | 35 | 40 | 240 | 65 | 54 | 24 | 2.95 |
| G245 | 38 | 45 | 260 | 70 | 59 | 27 | 3.85 |
| G250 | 44 | 50 | 280 | 75 | 64 | 28 | 4.40 |
| G255 | 50 | 55 | 298 | 85 | 69 | 32 | 5.1 |
| G260 | 54 | 60 | 300 | 88 | 75 | 34 | 5.9 |
| G265 | 56 | 65 | 312 | 88 | 79 | 35 | 6.6 |
| G270 | 60 | 70 | 332 | 90 | 84 | 38 | 7.1 |
| G275 | 65 | 75 | 342 | 94 | 90 | 40 | 8.0 |
| G285 | 72 | 88 | 450 | 130 | 108 | 56 | 20.1 |
| G295 | 80 | 94 | 500 | 150 | 114 | 60 | 24.8 |
| G2105 | 92 | 107 | 550 | 190 | 127 | 67.5 | 30.4 |

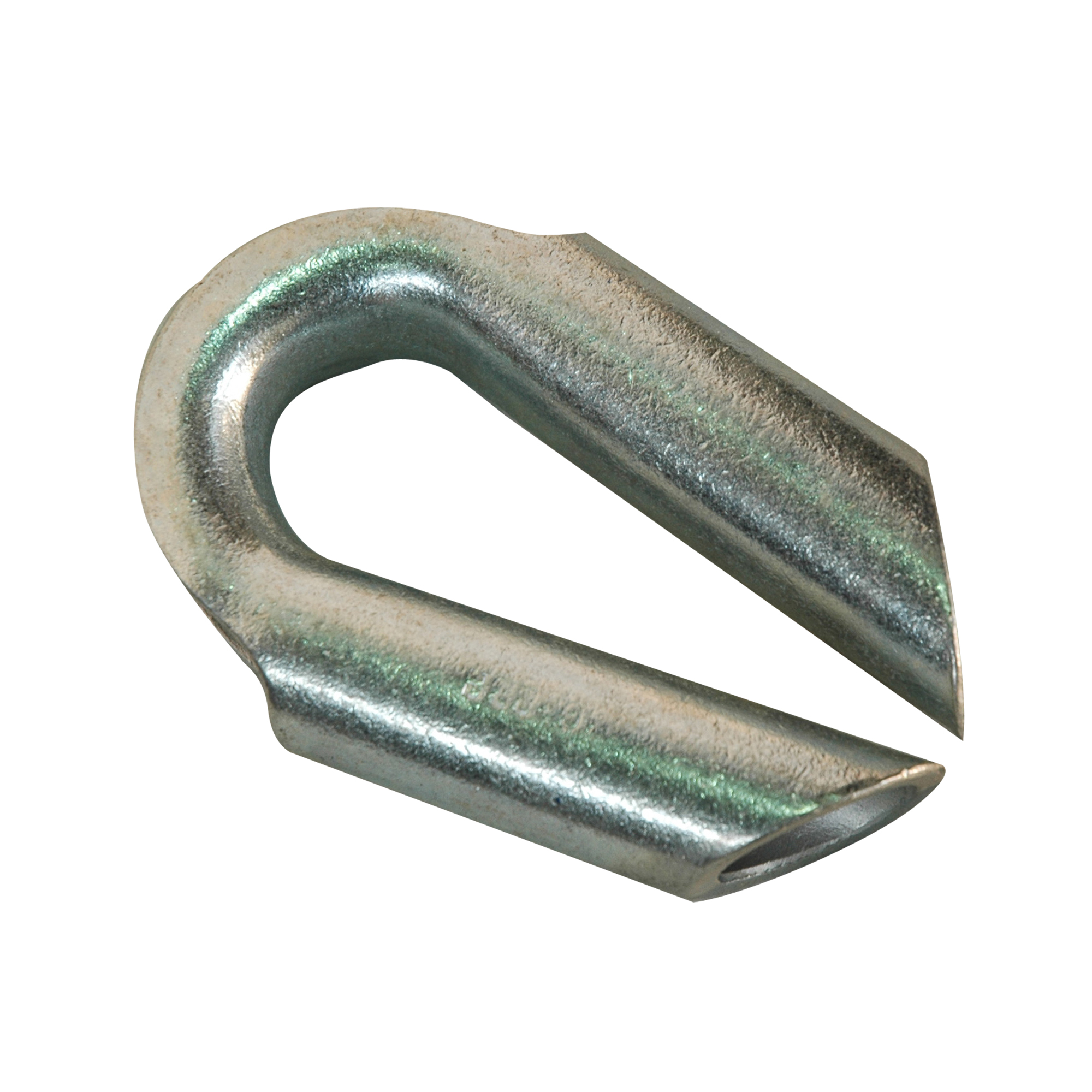

1. Tubular type thimble.
2. Material: mild steel.

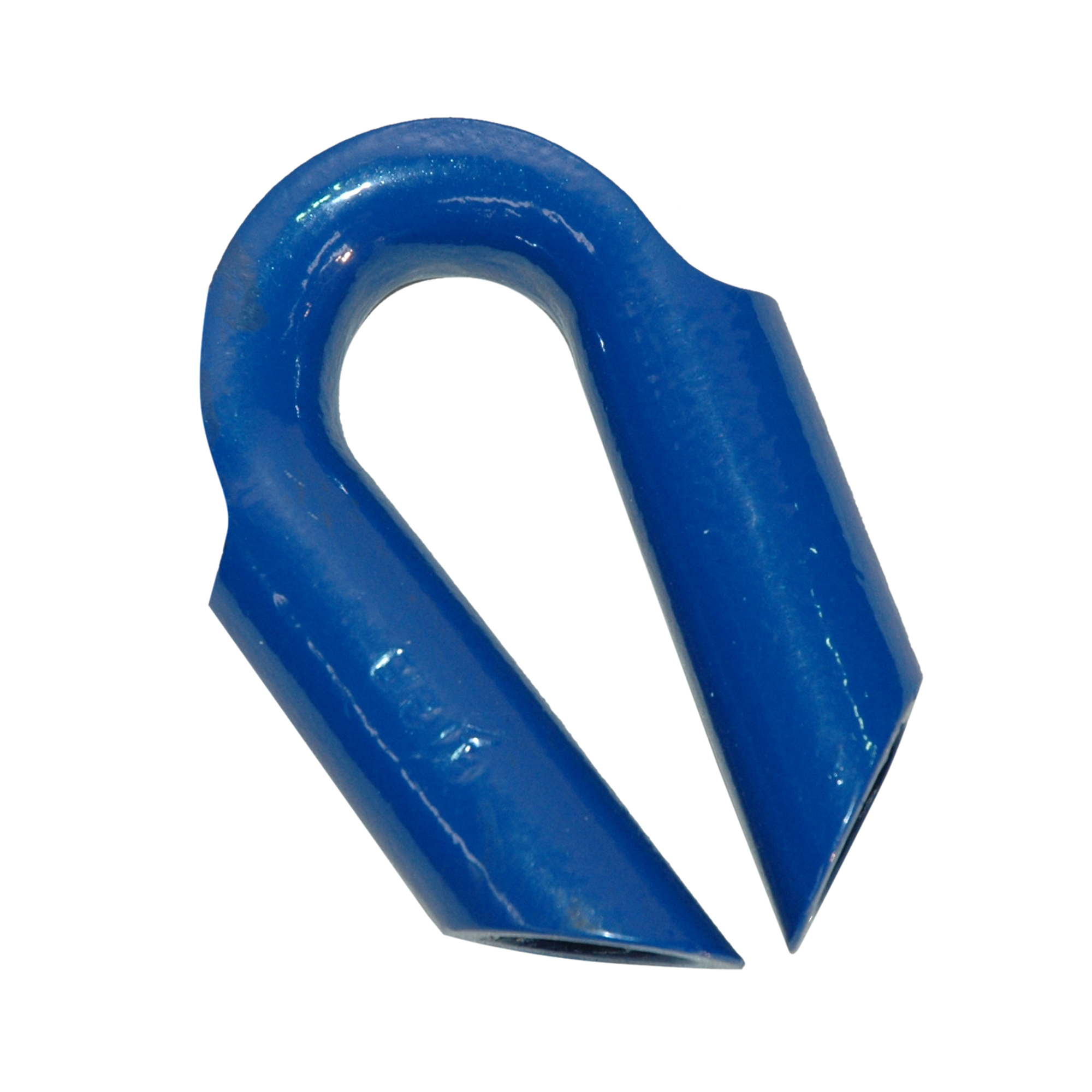

3. Finish: Elec. galvanized, powder coated.
