Stainless steel AISI316 or AISI304.
Full sizes available.

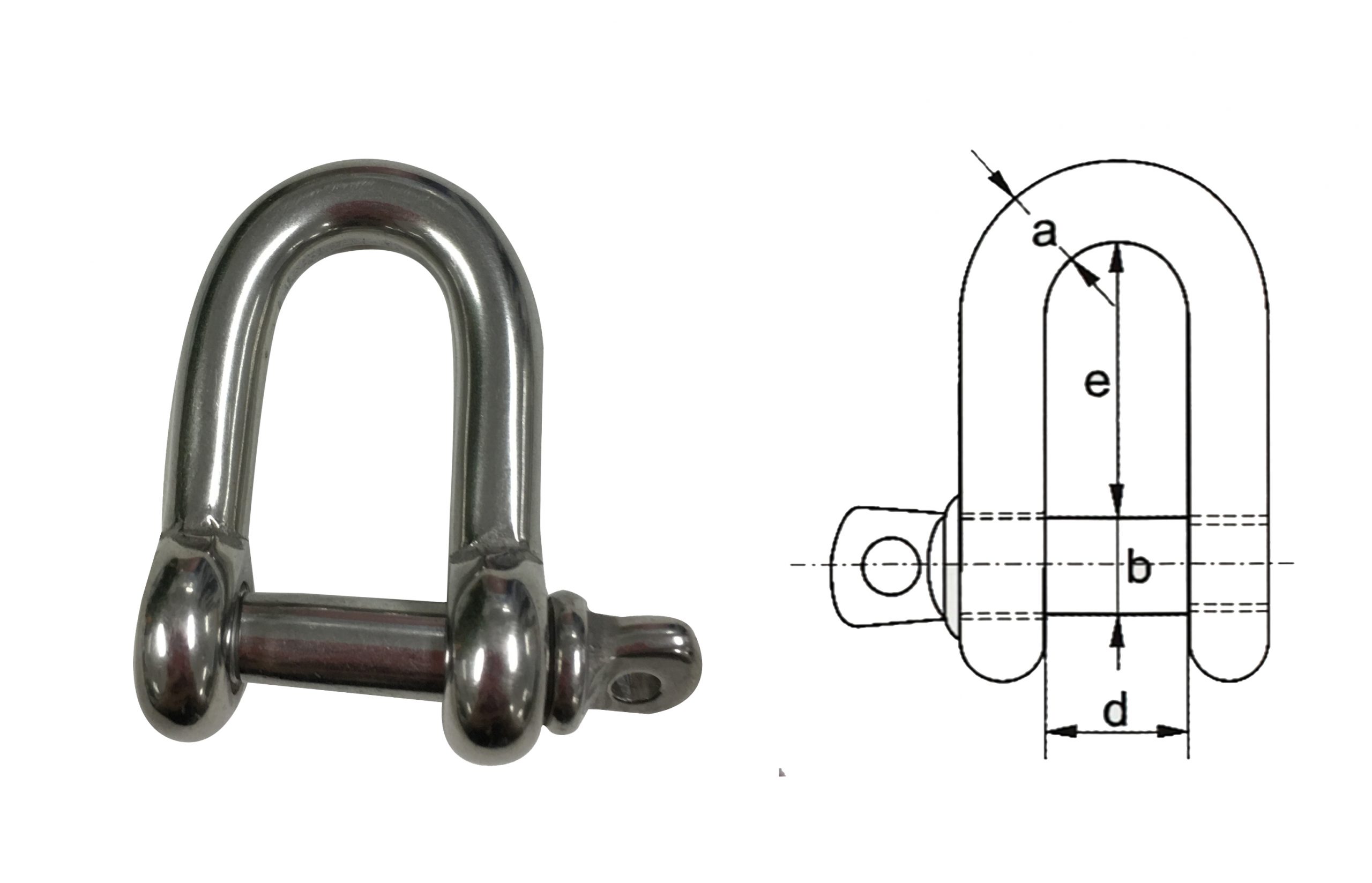

| size | diameter body | diameter pin | width inside | length inside | width bow | bow shackle weight per 100 pcs | dee shackle weight per 100 pcs |
| tons | a mm | b mm | d mm | e mm | f mm | kg | kg |
| 4 | 4 | 4 | 8 | 16 | 14 | 1.2 | 1.1 |
| 5 | 5 | 5 | 10 | 20 | 17 | 1.8 | 1.6 |
| 6 | 6 | 6 | 12 | 24 | 21 | 2.8 | 2.4 |
| 8 | 8 | 8 | 16 | 32 | 28 | 6.4 | 5.6 |
| 10 | 10 | 10 | 20 | 40 | 34 | 15 | 13 |
| 12 | 12 | 12 | 24 | 48 | 42 | 22 | 20 |
| 16 | 16 | 16 | 32 | 64 | 56 | 55 | 48 |
| 19 | 19 | 19 | 38 | 76 | 66 | 97 | 84 |
| 22 | 22 | 22 | 44 | 88 | 77 | 146 | 127 |
| 25 | 25 | 25 | 50 | 100 | 87 | 211 | 184 |
| 28 | 28 | 28 | 56 | 112 | 98 | 285 | 250 |
| 32 | 32 | 32 | 64 | 128 | 112 | 326 | 372 |
1.Stainless steel: AISI316, AISI304.
2.Full sizes available.
3.Corrosion resistant and long durable.
