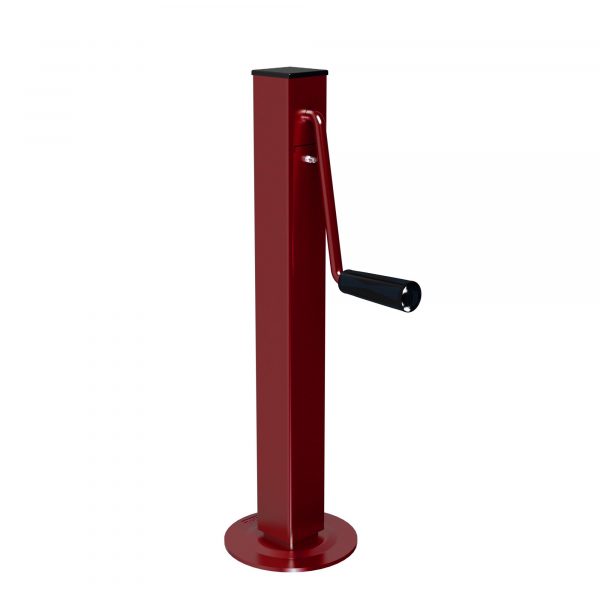

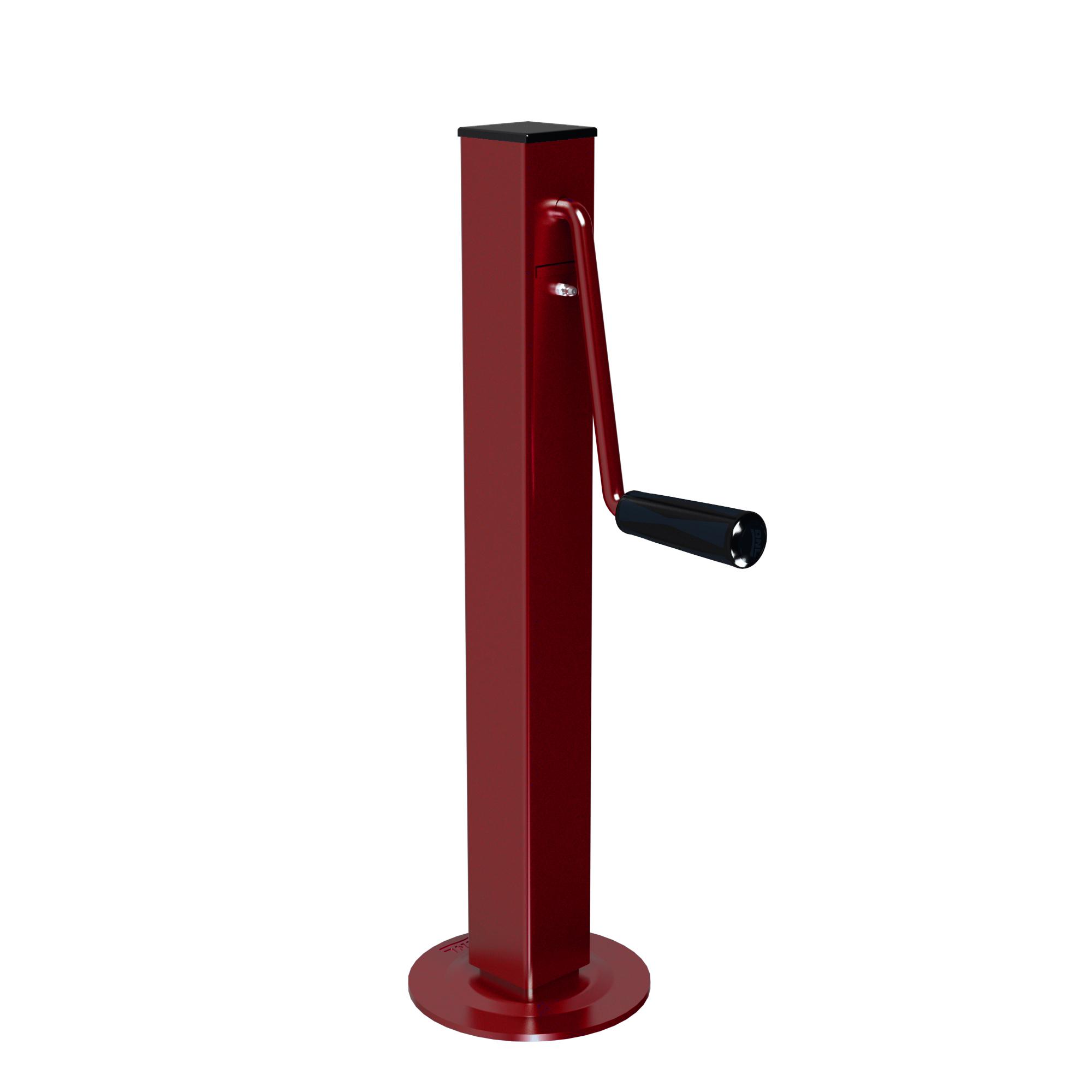

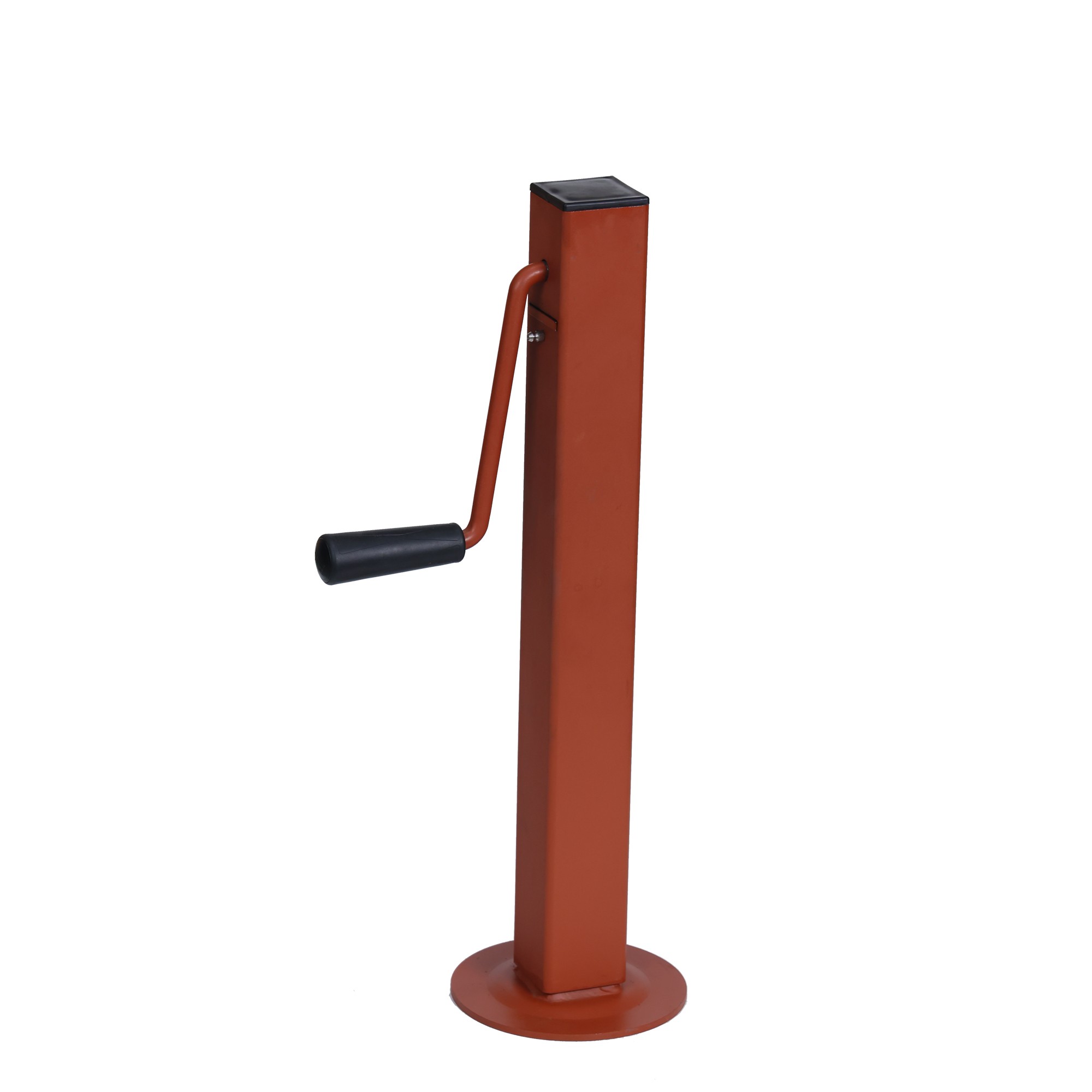

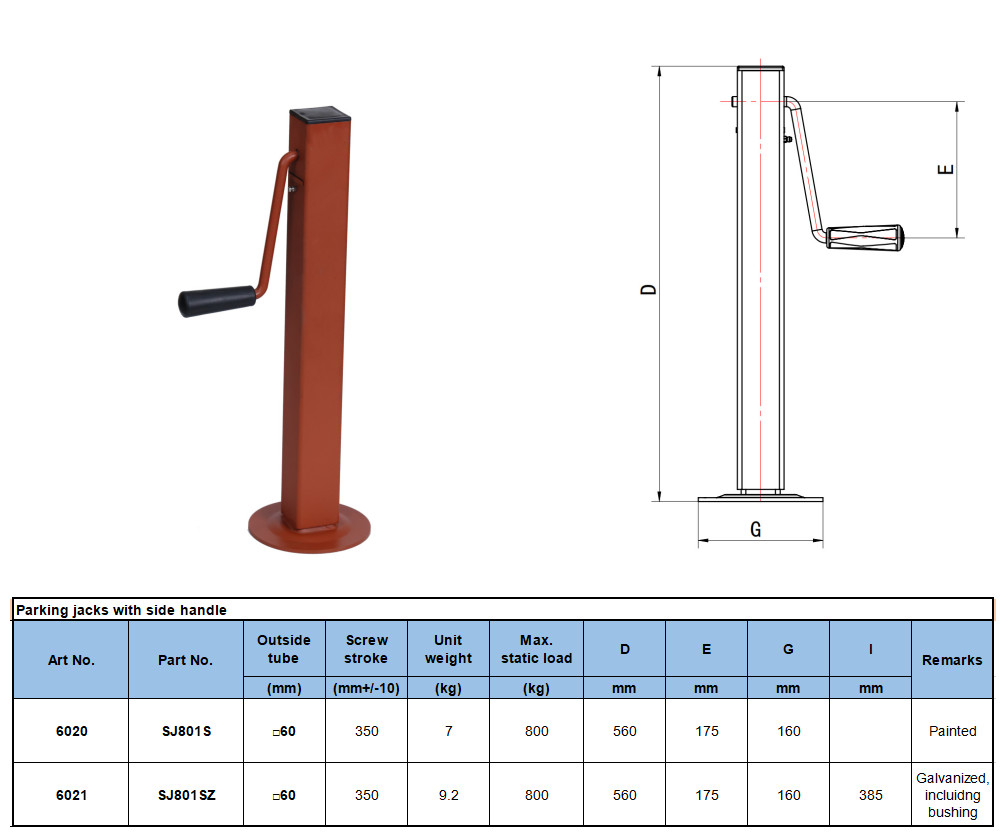

60mm Square tube with side handle 800kg static load screw stroke 350mm Parking Jacks
Tube Type | Φ60mm Square tube |
Load Capacity | 800kg |
Length of Extension | 350mm |
Body Length | 560mm |
Size of Dish foot | Round Φ160mm |
Wind | Side winding handle |
Unit Weight | 7kgs |
Brand | DNL |
Finishing | Painted (Can offer sandblasting, powder coating, electro-galvanizing and hot-dip galvanizing) |
Packing | 100pcs per plywood case (110x110x107cm) |
Apply to:
Box trailer, Flat trailer,Construction trailers, Lives stock trailer, Transportation Trailer,Agriculture vehicle, Industry vehicle, Building vehicle, Road trailer, Commercial trailer,etc.
Feature:

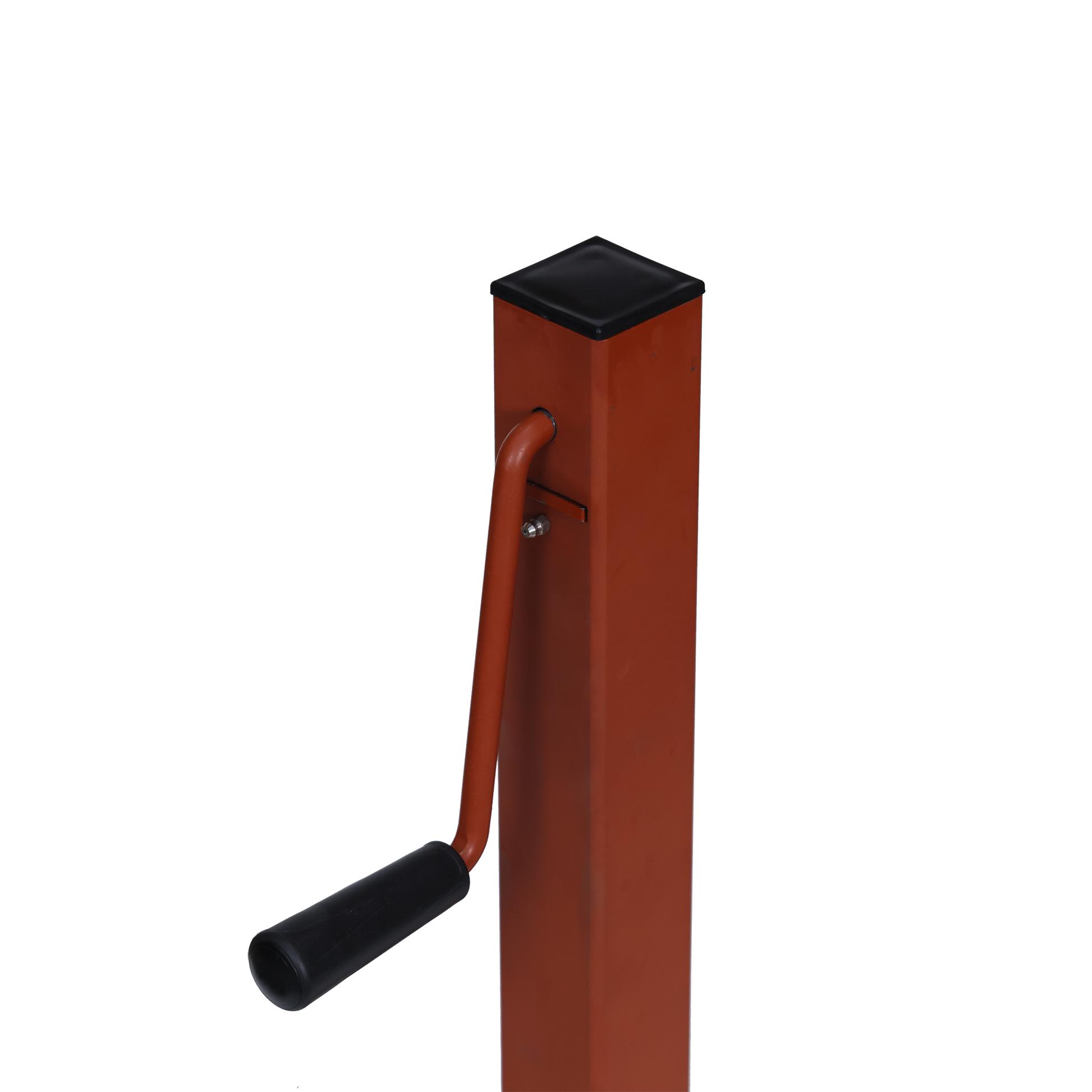

Ergonomic knob offers the best experience of operating easily, no feeling of tiredness.
High quality gears made from tempered steel for greater durability ensure your operation more smoothly and safely.
Reliable quality and stable performance of spindle & bearing extend the service life of products.
With Ultimate quality graphite grease on all moving parts to reduce routine maintenance requirements and guarantee the stable life time as well.
