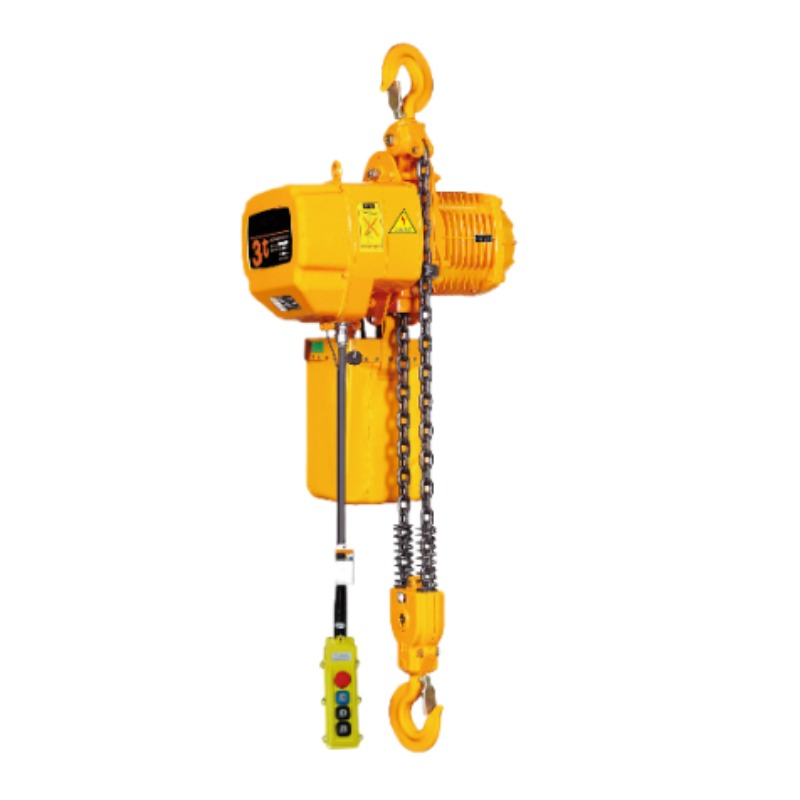

| SGW ELECTRIC HOIST | SINGLE SPEED | 0.5 Ton-10 Ton | TECHNICAL PARAMETERS | ||||||||||
| Liffing Motor | |||||||||||||
| Model | Rated Load (Ton) | Standard Liffing Height(m) | Liffing Speed (m/min) | Power (kw) | Rotation Speed (r/min) | Phases | Voltage (v) | Frequency (Hz) | Chain Falls | Chain Specification | Test Load (t) | Weight (kg) | Weight Added with 1m Higher (kg) |
| SGW-00501SF | 0.5 | 3 | 6.8 | 0.75 | 1440 | 3 | 200-440 | 50 | 1 | Φ6.3 | 0.625 | 47 | 0.81 |
| SGW-01001SF | 1 | 3 | 6.6 | 1.5 | 1440 | 3 | 200-440 | 50 | 1 | 07.1 | 1.25 | 61 | 1.1 |
| SGW-01002SF | 1 | 3 | 3.4 | 0.75 | 1440 | 3 | 200-440 | 50 | 2 | Φ6.3 | 1.25 | 52 | 1.62 |
| SGW-01501SF | 1.5 | 3 | 8.8 | 3.0 | 1440 | 3 | 200-440 | 50 | 1 | Φ10.0 | 1.875 | 108 | 2.3 |
| SGW-02001SF | 2 | 3 | 6.6 | 3.0 | 1440 | 3 | 200-440 | 50 | 1 | Φ10.0 | 2.5 | 115 | 2.3 |
| SGW-02002SF | 2 | 3 | 3.3 | 1.5 | 1440 | 3 | 200-440 | 50 | 2 | Φ7.1 | 2.5 | 73 | 2.2 |
| SGW-02501SF | 2.5 | 3 | 5.4 | 3.0 | 1440 | 3 | 200-440 | 50 | 1 | Φ11.2 | 3.125 | 116 | 2.8 |
| SGW-03001SF | 3 | 3 | 5.4 | 3.0 | 1440 | 3 | 200-440 | 50 | 1 | Φ11.2 | 3.75 | 122 | 2.8 |
| SGW-03002SF | 3 | 3 | 4.4 | 3.0 | 1440 | 3 | 200-440 | 50 | 2 | Φ10.0 | 3.75 | 131 | 4.7 |
| SGW-05002SF | 5 | 3 | 2.7 | 3.0 | 1440 | 3 | 200-440 | 50 | 2 | Φ11.2 | 6.25 | 151 | 5.6 |
| SGW-10004SF | 10 | 3 | 2.7 | 3.0 | 1440 | 3 | 200-440 | 50 | 4 | Φ11.2 | 12.5 | 300 | 8.4 |

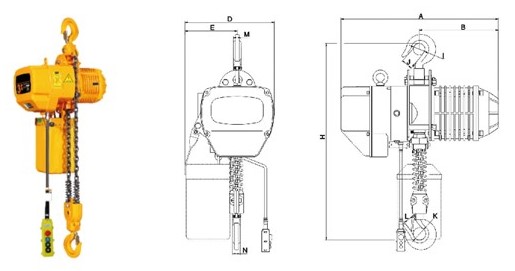

| SGW ELECTRIC HOIST | SINGLE SPEED | 0.5Ton-10Ton | SIZE SPECIFICATIO | ||||||||
| Model | H | A | B | D | E | I | J | K | L | M | N |
| SGW-00501SF | 550 | 460 | 230 | 280 | 160 | Φ35 | 25 | Φ35 | 25 | 17 | 17 |
| SGW-01001SF | 650 | 520 | 260 | 300 | 176 | Φ40 | 31 | Φ40 | 31 | 22 | 22 |
| SGW-01002SF | 670 | 460 | 230 | 280 | 205 | Φ40 | 31 | Φ40 | 31 | 22 | 22 |
| SGW-01501SF | 800 | 615 | 295 | 430 | 265 | Φ47 | 40 | Φ47 | 38 | 30 | 30 |
| SGW-02001SF | 800 | 615 | 295 | 430 | 265 | Φ47 | 40 | Φ47 | 38 | 30 | 30 |
| SGW-02002SF | 835 | 520 | 260 | 300 | 236 | Φ47 | 38 | Φ47 | 38 | 30 | 30 |
| SGW-02501SF | 845 | 615 | 295 | 430 | 265 | Φ58 | 47 | Φ58 | 47 | 36 | 36 |
| SGW-03001SF | 845 | 615 | 295 | 430 | 265 | Φ58 | 47 | Φ58 | 47 | 36 | 36 |
| SGW-03002SF | 950 | 615 | 295 | 430 | 320 | Φ58 | 47 | Φ58 | 47 | 36 | 36 |
| SGW-05002SF | 1030 | 615 | 295 | 430 | 325 | Φ60 | 48 | Φ60 | 48 | 43 | 43 |
| SGW-10004SF | 1400 | 630 | 315 | / | 890 | Φ85 | 80 | Φ80 | 80 | 104 | 55 |

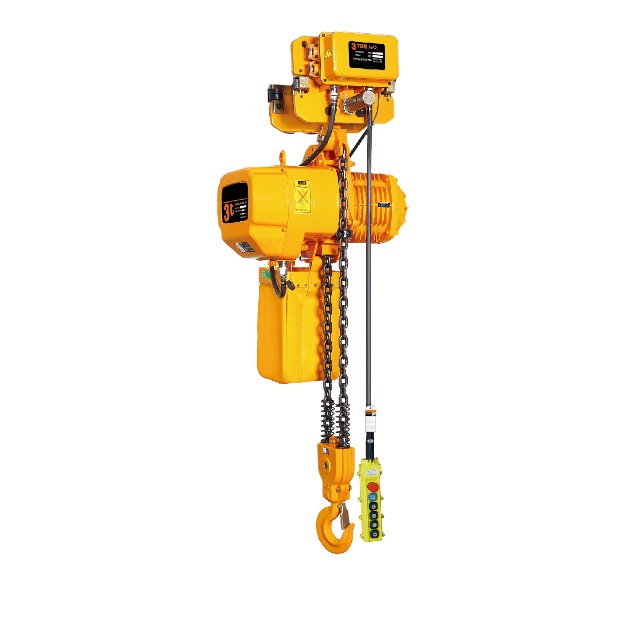

| SGW ELECTRIC HOIST WITH TROLLEY | SINGLE SPEED | 0.5 Ton-10 Ton | TECHNICAL PARAMETERS | |||||||||||||||||
| Liffing Motor Operation Motor | ||||||||||||||||||||
| Model | Rated Load (Ton) | Slandard Liffing Height (m) | Liffing Speed (m/min) | Power (kw) | Rotation Speed(r/min) | Phases | Vollage (v) | Frequency (Hz) | Power (kw) | Rotation Speed(r/min) | Operation Speed(m/min) | Phases | Voltage (v) | Frequency (Hz) | Chain Falls | Chain Specification | Test Load (t) | I-Beam (mm) | Weight (kg) | Weight Added with 1m Higher(kg) |
| SGW-00501SE | 0.5 | 3 | 6.8 | 0.75 | 1440 | 3 | 200-440 | 50 | 0.4 | 1440 | 11/21 | 3 | 200-440 | 50 | 1 | Φ6.3 | 0.625 | 58-153 | 89 | 0.81 |
| SGW-01001SE | 1 | 3 | 6.6 | 1.5 | 1440 | 3 | 200-440 | 50 | 0.4 | 1440 | 11/21 | 3 | 200-440 | 50 | 1 | Φ7.1 | 1.25 | 58-153 | 103 | 1.1 |
| SGW-01002SE | 1 | 3 | 3.4 | 0.75 | 1440 | 3 | 200-440 | 50 | 0.4 | 1440 | 11/21 | 3 | 200-440 | 50 | 2 | Φ6.3 | 1.25 | 58-153 | 101 | 1.62 |
| SGW-01501SE | 1.5 | 3 | 8.8 | 3.0 | 1440 | 3 | 200-440 | 50 | 0.4 | 1440 | 11/21 | 3 | 200-440 | 50 | 1 | Φ10.0 | 1.875 | 82-178 | 157 | 2.3 |
| SGW-02001SE | 2 | 3 | 6.6 | 3.0 | 1440 | 3 | 200-440 | 50 | 0.4 | 1440 | 11/21 | 3 | 200-440 | 50 | 1 | Φ10.0 | 2.5 | 82-178 | 164 | 2.3 |
| SGW-02002SE | 2 | 3 | 3.3 | 1.5 | 1440 | 3 | 200-440 | 50 | 0.4 | 1440 | 11/21 | 3 | 200-440 | 50 | 2 | Φ7.1 | 2.5 | 82-178 | 122 | 2.2 |
| SGW-02501SE | 2.5 | 3 | 5.4 | 3.0 | 1440 | 3 | 200-440 | 50 | 0.75 | 1440 | 11/21 | 3 | 200-440 | 50 | 1 | Φ11.2 | 3.125 | 100-178 | 177 | 2.8 |
| SGW-03001SE | 3 | 3 | 5.4 | 3.0 | 1440 | 3 | 200-440 | 50 | 0.75 | 1440 | 11/21 | 3 | 200-440 | 50 | 1 | Φ11.2 | 3.75 | 100-178 | 183 | 2.8 |
| SGW-03002SE | 3 | 3 | 4.4 | 3.0 | 1440 | 3 | 200-440 | 50 | 0.75 | 1440 | 11/21 | 3 | 200-440 | 50 | 2 | Φ10.0 | 3.75 | 100-178 | 192 | 4.7 |
| SGW-03003SE | 3 | 3 | 2.2 | 1.5 | 1440 | 3 | 200-440 | 50 | 0.75 | 1440 | 11/21 | 3 | 200-440 | 50 | 3 | Φ7.1 | 3.75 | 100-178 | 146 | 3.5 |
| SGW-05002SE | 5 | 3 | 2.7 | 3.0 | 1440 | 3 | 200-440 | 50 | 0.75 | 1440 | 11/21 | 3 | 200-440 | 50 | 2 | Φ11.2 | 6.25 | 100-178 | 234 | 5.6 |
| SGW-10004SE | 10 | 3 | 2.7 | 3.0 | 1440 | 3 | 200-440 | 50 | 0.75 | 1440 | 11/21 | 3 | 200-440 | 50 | 3 | Φ11.2 | 12.5 | 150-220 | 440 | 11 |

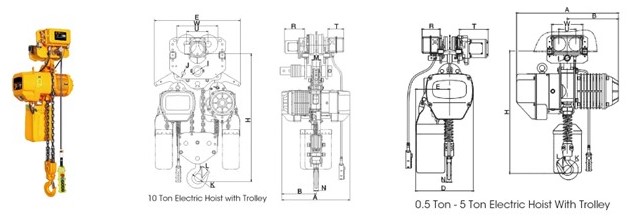

| SGW ELECTRIC HOIST WITH TROLLEY | SINGLE SPEED | 0.5Ton-10 Ton | SIZE SPECIFICATIO | |||||||||||
| Model | H | A | B | D | E | I | K | L | N | W | U | R | T | |
| SGW-00501SE | 630 | 460 | 230 | 280 | 160 | Φ35 | Φ35 | 25 | 17 | 206 | 111 | 142 | 231 | |
| SGW-01001SE | 650 | 520 | 260 | 300 | 176 | Φ40 | Φ40 | 32 | 24 | 206 | 111 | 142 | 231 | |
| SGW-01002SE | 695 | 460 | 230 | 280 | 205 | Φ41 | Φ40 | 31 | 24 | 206 | 111 | 142 | 231 | |
| SGW-01501SE | 770 | 615 | 295 | 430 | 265 | Φ47 | Φ47 | 40 | 30 | 237 | 127 | 142 | 231 | |
| SGW-02001SE | 770 | 615 | 295 | 430 | 265 | Φ47 | Φ47 | 40 | 30 | 237 | 127 | 142 | 231 | |
| SGW-02002SE | 815 | 520 | 260 | 300 | 236 | Φ36 | Φ47 | 38 | 30 | 237 | 127 | 142 | 231 | |
| SGW-02501SE | 830 | 615 | 295 | 430 | 265 | Φ58 | Φ58 | 48 | 36 | 265 | 140 | 142 | 231 | |
| SGW-03001SE | 830 | 615 | 295 | 430 | 265 | Φ58 | Φ58 | 48 | 36 | 265 | 140 | 142 | 231 | |
| SGW-03002SE | 930 | 615 | 295 | 430 | 320 | Φ43 | Φ58 | 47 | 36 | 265 | 140 | 142 | 231 | |
| SGW-03003SE | 940 | 520 | 260 | 350 | 205 | Φ43 | Φ58 | 47 | 36 | 265 | 140 | 142 | 231 | |
| SGW-05002SE | 1015 | 615 | 295 | 430 | 325 | Φ54 | Φ60 | 48 | 43 | 296 | 156 | 142 | 231 | |
| Model | H | A | B | E | I | J | K | L | M | N | W | U | R | T |
| SGW-10004SE | 1190 | 630 | 315 | 890 | Φ70 | Φ36 | Φ85 | 80 | 85 | 55 | 366 | 191 | 142 | 231 |
Shell:
Light aluminum alloy shell shall be adopted, which is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
Inverse phase sequence protecting device:
It is the special electrical installation which controls the circuit not to work in case of wiring error in the power supply.
Limit switch:
The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
24V/36V device:
it is used to prohibit the emergencies from occurring in case of the leakage in the switch.
Side magnetic braking device:
This device shall realize the instant brake in case of the power dump.
Chain bag:
It shall be light, handsome and durable.
Chain:
The chain shall adopt the imported FEC G80 ultra heat-treatable aluminum alloy chain.
Stainless steel AISI316 or AISI304.
Full sizes available.
Super carbon steel.
High tensile strength.
High tensile polyester.
EN1492 standard.
Flexible and wear resistant.
High quality carbon steel.
Used in pairs or multiples.
