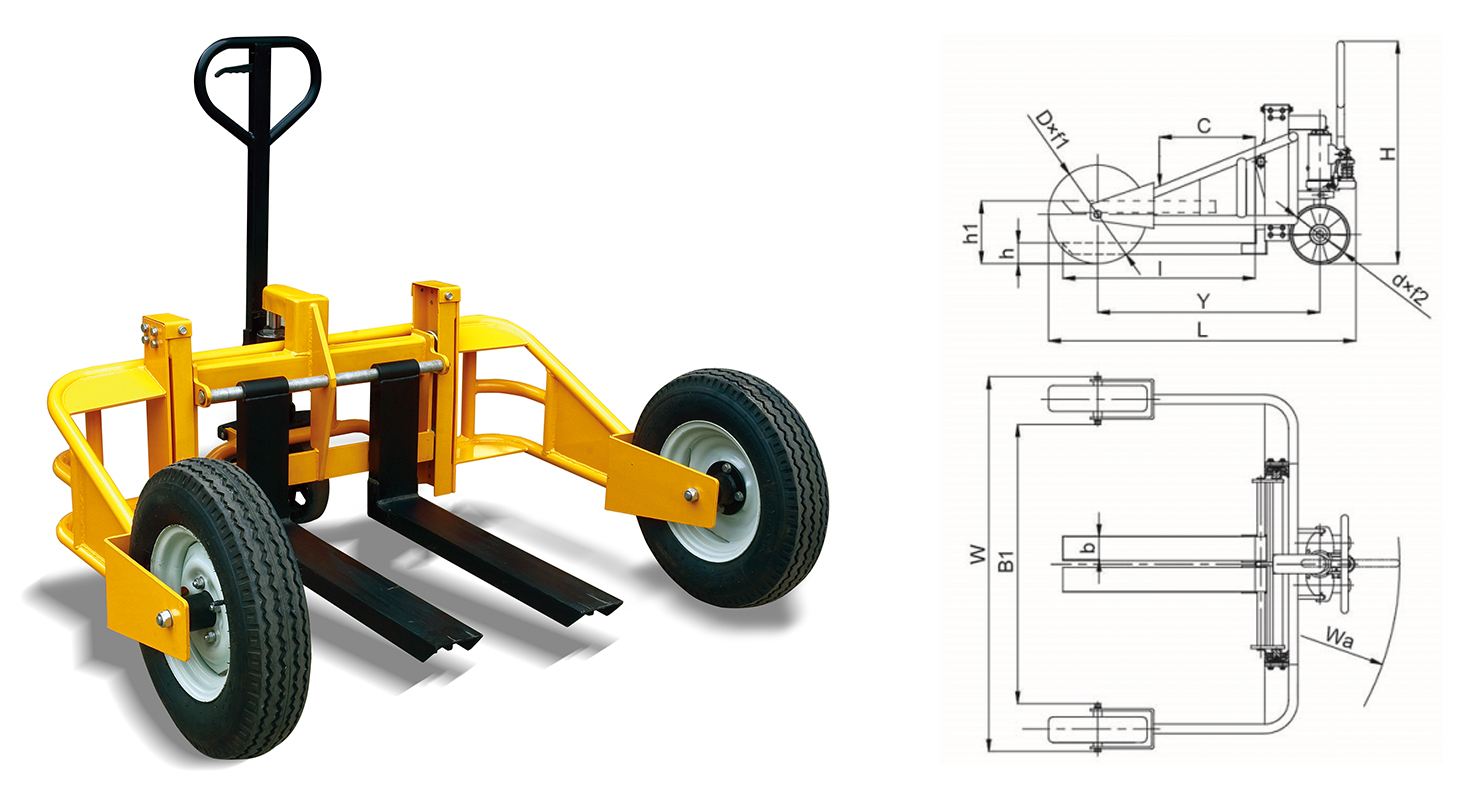

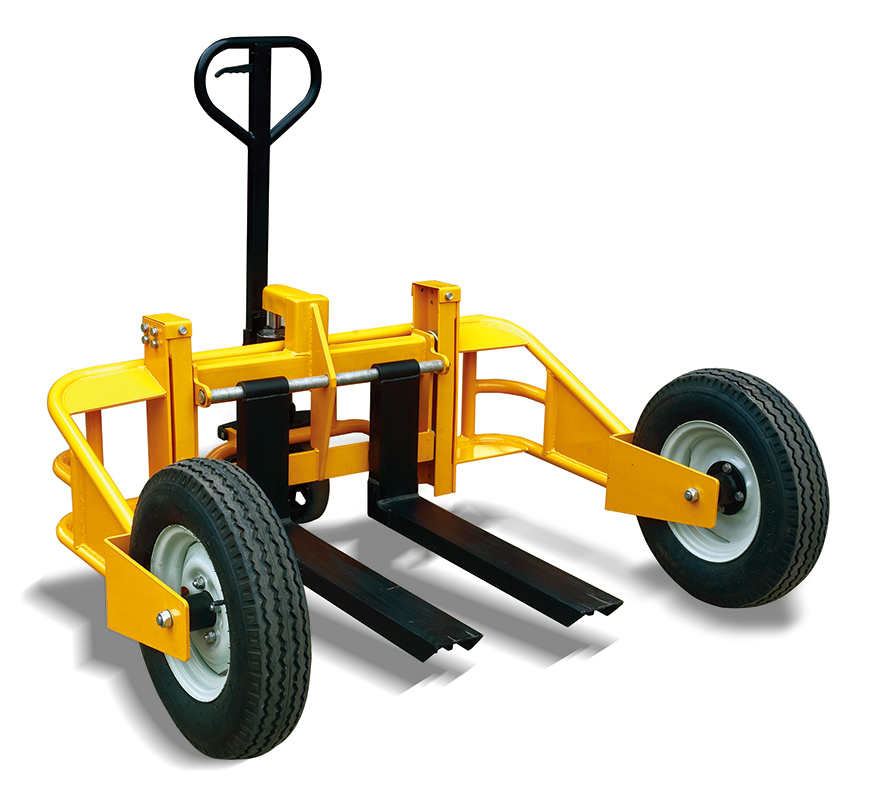

Model

MK-D100

MK-D125

Rated Capacity                         (kg)

1000

1250

Max.Fork Height                    h1(mm)

240

Min.Fork Height                      h(mm)

70

Fork Length                          I(mm)

800(860)

Load Center                         C(mm)

400(430)

Adjustable Fork Width                  (mm)

216-680

256-680

Individual Fork Width                  b(mm)

100

120

Distance inside the Front Wheel       B1(mm)

1230

Axle Distance between front Wheel
and rear steering wheel                Y(mm)

973

Front Load Wheel                Dia.xW(mm)

Φ568x145

Rear Steering Wheel             Dia.xW(mm)

Φ250

Tur Radius                         Wa(mm)

1500

Overall Size                    LxWxH(mm)

1406x1670x1280

Net Weight                             (kg)

210

238
