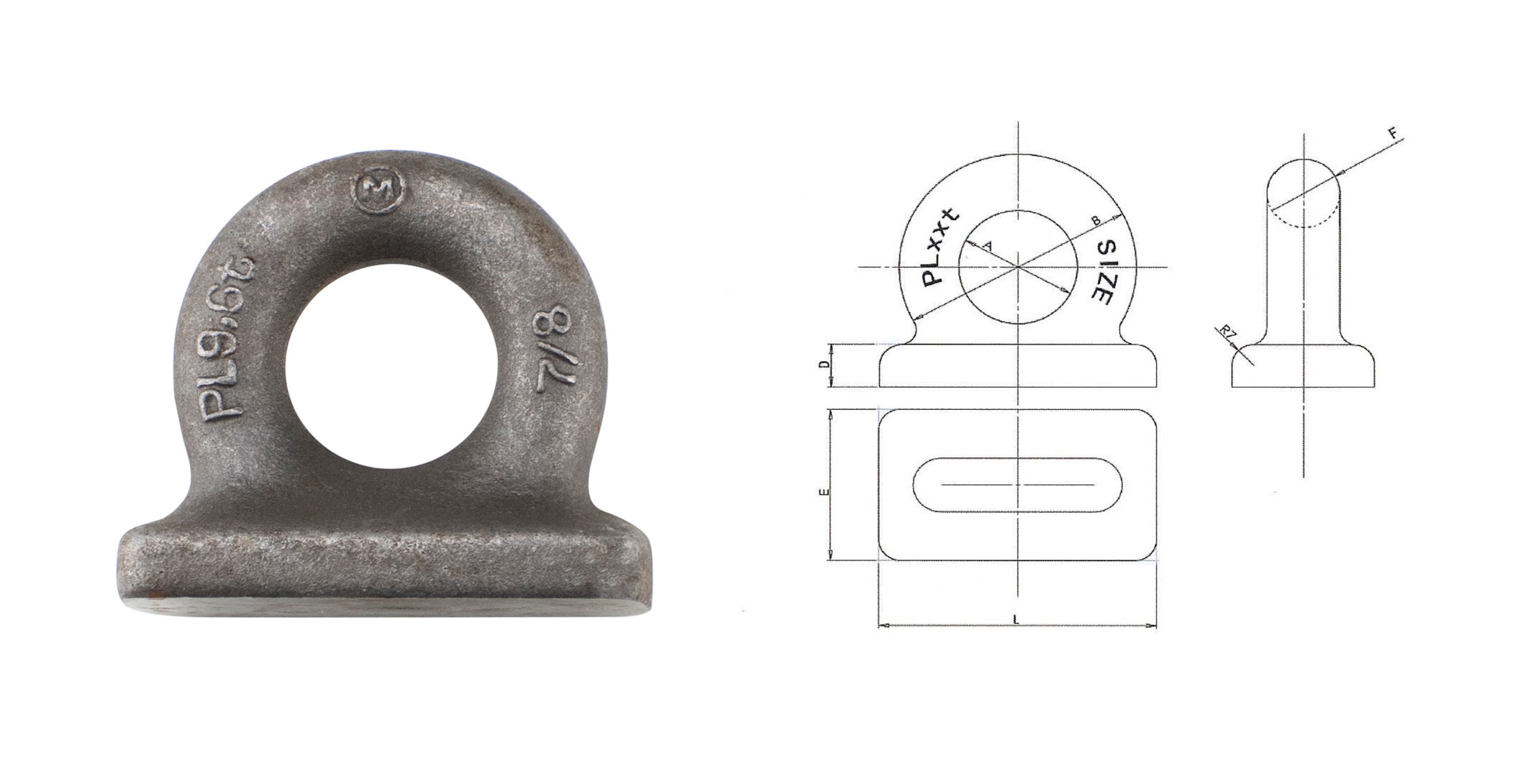

| SIZE | WLL (t) | A (mm) | B (mm) | D (mm) | E (mm) | L (mm) | f (mm) |
| 10 | 2.0T | 20 | 41 | 9 | 26 | 48 | 10.5 |
| 13 | 3.5T | 25.5 | 50.5 | 11 | 35 | 63 | 12.5 |
| 16 | 5.5T | 32 | 64 | 14 | 46 | 74 | 16 |
| 19 | 7.5T | 38 | 76 | 14 | 51 | 89 | 19 |
| 22 | 9.6T | 44 | 90 | 13 | 60 | 106 | 23 |
| 25 | 13T | 50 | 101 | 20 | 70 | 122 | 25.5 |
| 28 | 15.75T | 57 | 113 | 18 | 76 | 130 | 28 |
| 32 | 20T | 64 | 128 | 19 | 85 | 145 | 32 |
| 35 | 23.63T | 70 | 140 | 21 | 95 | 159 | 35 |
| 38 | 29T | 76 | 152 | 22 | 100 | 170 | 38 |
| 44 | 39T | 88 | 176 | 26 | 120 | 200 | 44 |
| 50 | 50T | 100 | 200 | 30 | 140 | 230 | 50 |

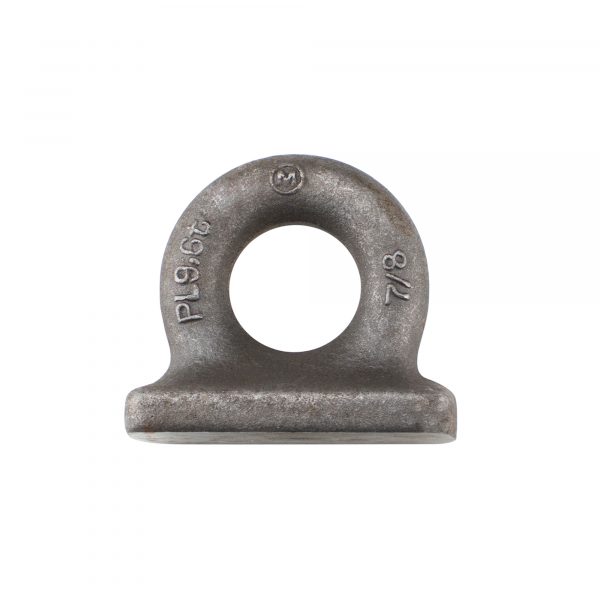

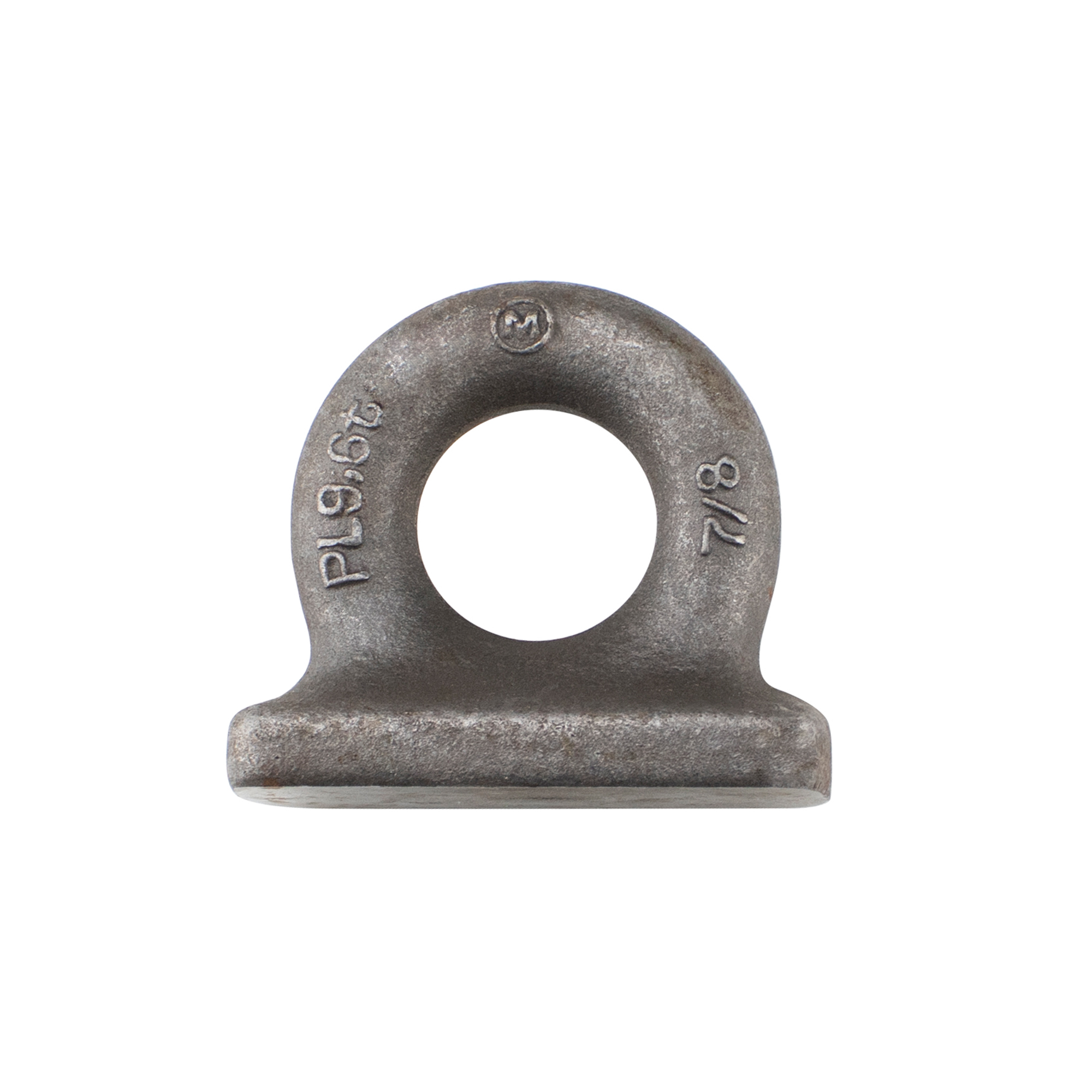

1.Rectangular base deck plate.
2.MBL equals 5xWLL.
3.Material: mild steel.
4.Finish: Hot dip galvanized, self-colored.
