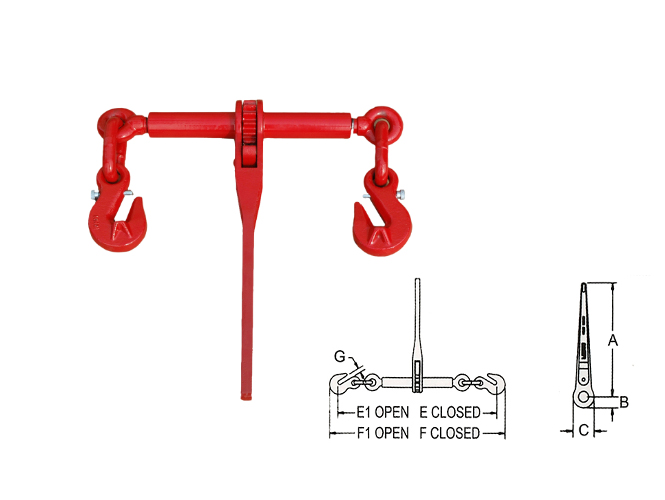

| Chain Size (mm) | Lashing Capacity(kn) | Breaking Force(kn) | Handle Length(in) | Barrel Length(in) | Take Up(in) | Dimensions(in) | Weight Each(kgs) | |||||||
| A | B | C | E | E1 | F | F1 | G | |||||||
| 8 | 40 | 80.4 | 14 | 10 | 8 | 14 | 1.38 | 2.75 | 22.94 | 30.94 | 25.13 | 33.13 | 0.5 | 4.9 |
| 10 | 63 | 126 | 14 | 10 | 8 | 14 | 1.38 | 2.75 | 25.25 | 33.25 | 27.63 | 35.63 | 0.63 | 5.4 |
| 13 | 100 | 212 | 14 | 10 | 8 | 14 | 1.38 | 2.75 | 26.38 | 34.38 | 29.44 | 37.44 | 0.72 | 7.3 |
| 16 | 160 | 322 | 14 | 10 | 8 | 14 | 1.38 | 2.75 | 30.08 | 38.08 | 34.1 | 42.1 | 0.75 | 11 |
