Quenched and Tempered.
Forged handle and casting handle available.
| Min-Max Chain Size (in) | Working Load Limit(lbs) | Breaking load(lbs) | Handle Length(in) | Barrel Length(in) | Take Up(in) | Dimensions(in) | Weight Each(lbs) | |||||||

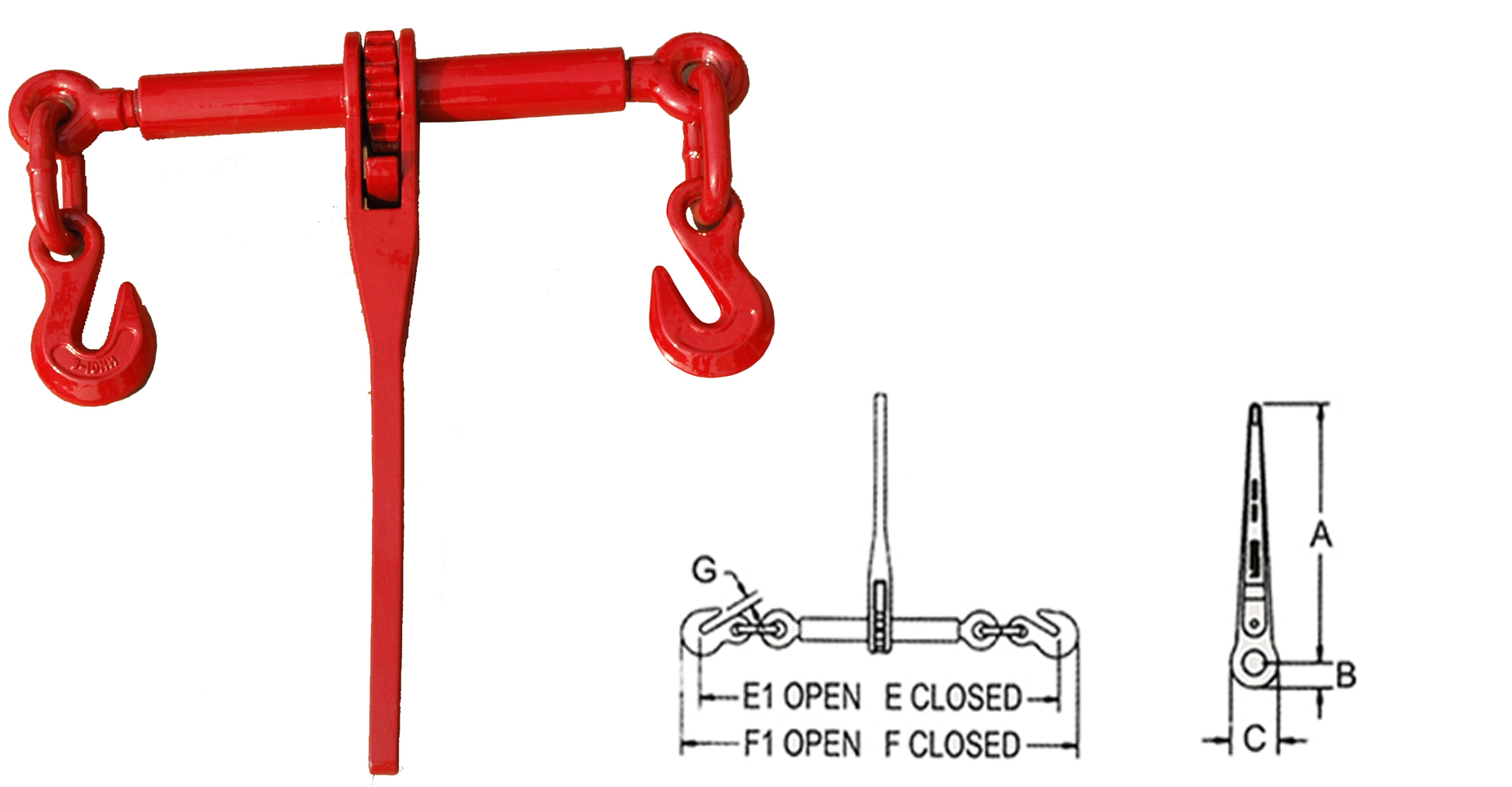

| A | B | C | E | E1 | F | F1 | G | |||||||
| 1/4-5/16 | 2600 | 9100 | 7.16 | 8 | 6 | 7.16 | 0.89 | 1.77 | 16.22 | 21.26 | 17.79 | 31.23 | 0.35 | 3.64 |
| 5/16-3/8 | 5400 | 19000 | 14 | 10 | 8 | 14 | 1.38 | 2.75 | 22.94 | 30.94 | 25.13 | 33.13 | 0.5 | 10.35 |
| 3/8-1/2 | 9200 | 33000 | 14 | 10 | 8 | 14 | 1.38 | 2.75 | 25.25 | 33.25 | 27.63 | 35.63 | 0.63 | 11.23 |
| 1/2-5/8 | 13000 | 46000 | 14 | 10 | 8 | 14 | 1.38 | 2.75 | 26.38 | 34.38 | 29.44 | 37.44 | 0.72 | 15.86 |
