Products

Dedicated for best quality innovations

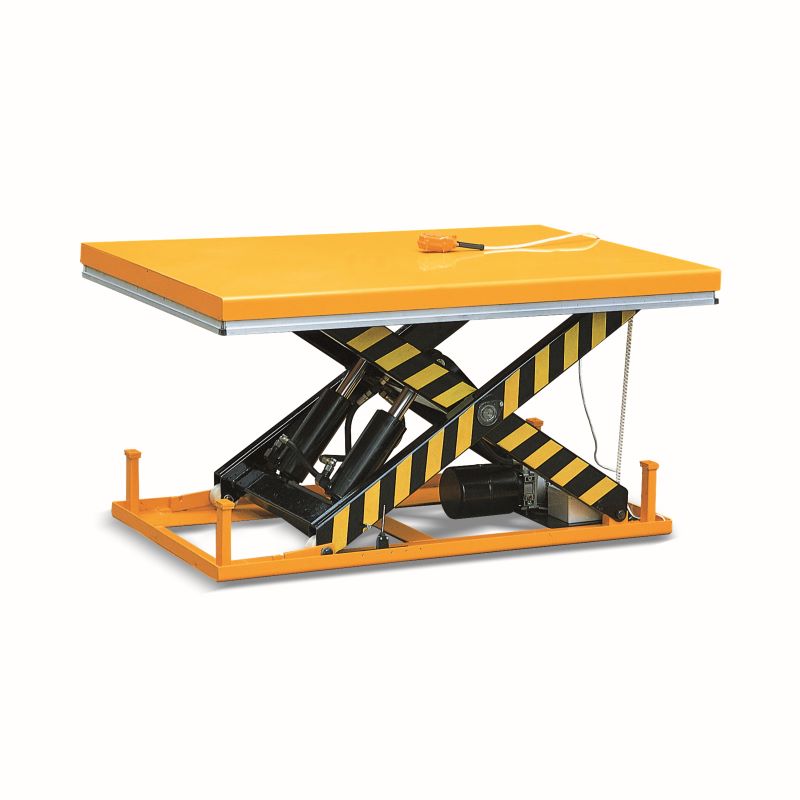

Lift Table MJ-A

Heavy duty design.

European safety standard.

PDF
Get a Quote

Product Details

ModelCapacity
(kg)		Min.Height
(mm)		Max.Height
(mm)		Platform Size
(mm)		Basement Size
(mm)		Lifting Time
(s)		Net Weight
(kg)		Standard
Power Pack
MJ-A6001600039011501600x10001560x100025-355403 phases
380V
50Hz
AC 2.2kW
MJ-A6002600039011501800x10001560x100025-35555
MJ-A6003600039011501600x14001560x100025-35586
MJ-A6004600039011501800x14001560x100025-35605
MJ-A6005600039011501600x15001560x150025-35670
MJ-A6006600039011501800x15001560x150025-35690
MJ-A6007600039011501600x20001560x150025-35728
MJ-A6008600039011501800x20001560x150025-35752
MJ-A6009600040016002000x10001955x100030-40675
MJ-A6010600040016002200x10001955x100030-40690
MJ-A6011600040016002000x14001955x100030-40728
MJ-A6012600040016002200x14001955x100030-40748
MJ-A6013600040016002000x15001955x150030-40835
MJ-A6014600040016002200x15001955x150030-40858
MJ-A6015600040016002000x20001955x150030-40908
MJ-A6016600040016002200x20001955x150030-40934
  1. Heavy duty design.
  2. Meet EN1570 norm and ANSI/ASME safety standard.
  3. High quality power unit made in Europe.
  4. Self-lubricating bushings on pivot points.
  5. Removable lifting eyes.
  6. Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
  7. Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
  8. Heavy duty cylinders with drainage system and check valve to stop the lift table lowering suddenly in case of hose burst.
  9. Safety clearance between scissors to prevent trapping during operation.
