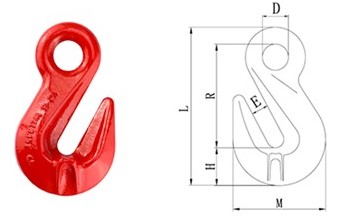

| ITEM | WEIGHT(KG) | WLL(T) | B.L(T) | E±0.5(mm) | φ±1(mm) | H±1(mm) | R±2(mm) | L±2(mm) | M±2(mm) |
| 6-8 | 0.14 | 1.12 | 4.48 | 8 | 13.5 | 17.9 | 51.4 | 75.3 | 45.5 |
| 7/8-8 | 0.245 | 2 | 8 | 10.8 | 18 | 20 | 61.5 | 91.2 | 53 |
| 10-8 | 0.65 | 3.15 | 12.6 | 13 | 20 | 29 | 80 | 122 | 71 |
| 13-8 | 1.39 | 5.3 | 21.2 | 16.5 | 26 | 42.8 | 99.7 | 158 | 90 |
| 16-8 | 2.2 | 8 | 32 | 20 | 30.5 | 47.7 | 104 | 169 | 113 |
| 20-8 | 4.6 | 12.5 | 50 | 25 | 37.5 | 56 | 140 | 219 | 143 |
| 22-8 | 8.2 | 15 | 60 | 28 | 44 | 68 | 165 | 259 | 160 |
| 26-8 | 9.8 | 21.2 | 84.8 | 30 | 44 | 77 | 188.8 | 298 | 171 |
| 32-8 | 19.4 | 31.5 | 126 | 38 | 57 | 95 | 228 | 361 | 229 |
1.Super alloy steel.
2.Quenched and Tempered.
3.Suitable for G80 EN818-2 chains.
4.100% Magnetic powder inspection.
5.Individually proof load test at 2.5 times WLL.
6.Fatigue test at 1.5 times WLL for 20,000 cycles.
7.Strict breaking test.
8.Surface treatment: Powder coated.
