Super alloy steel.
Quenched and tempered.
To suit G80 chains.

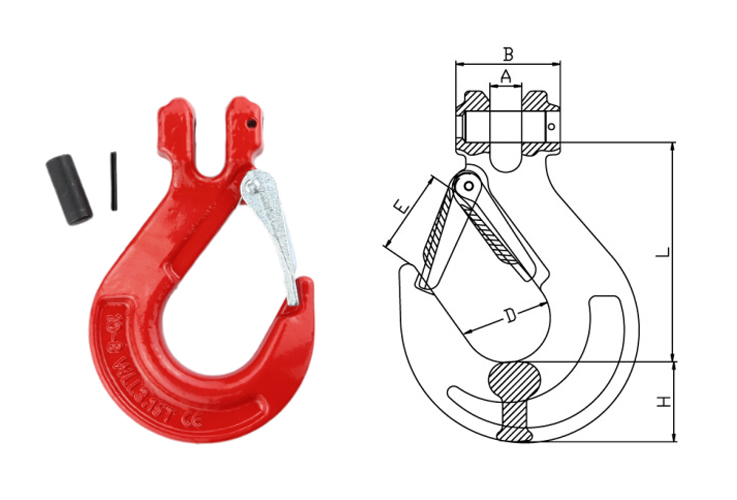

ITEM | WEIGHT(KG) | WLL(T) | B.L(T) | A±0.5(mm) | B±1.5(mm) | D±1(mm) | H±2(mm) | L±1(mm) | E±2(mm) |
6-8 | 0.32 | 1.12 | 4.48 | 8 | 32 | 35 | 23 | 76 | 26 |
7/8-8 | 0.48 | 2 | 8 | 9.5 | 37 | 37 | 25 | 86.4 | 29 |
10-8 | 0.95 | 3.15 | 12.6 | 12.5 | 49 | 46 | 31 | 104 | 39 |
13-8 | 1.8 | 5.3 | 21.2 | 16.5 | 56.5 | 56 | 42.5 | 128 | 47.5 |
16-8 | 3.4 | 8 | 32 | 21.5 | 70.5 | 60 | 54 | 150 | 56 |
20-8 | 6 | 12.5 | 50 | 24 | 77 | 79 | 58 | 180 | 59 |
22-8 | 10.4 | 15 | 60 | 26 | 91 | 101 | 62 | 213 | 72 |
26-8 | 14.5 | 21.2 | 84.8 | 30 | 117 | 115 | 75 | 250 | 101 |
32-8 | 27 | 31.5 | 126 | 35 | 150 | 140 | 88 | 317 | 124 |
1.Super alloy steel.
2,Quenched and Tempered.
3.Suitable for G80 EN818-2 chains.
4.100% Magnetic powder inspection.
5.Individually proof load test at 2.5 times WLL.
6.Fatigue test at 1.5 times WLL for 20,000 cycles.
7.Strict breaking test.
8.Surface treatment: Powder coated
