Forged super alloy steel.
25% stronger than G80.
Suitable for G100 chains.

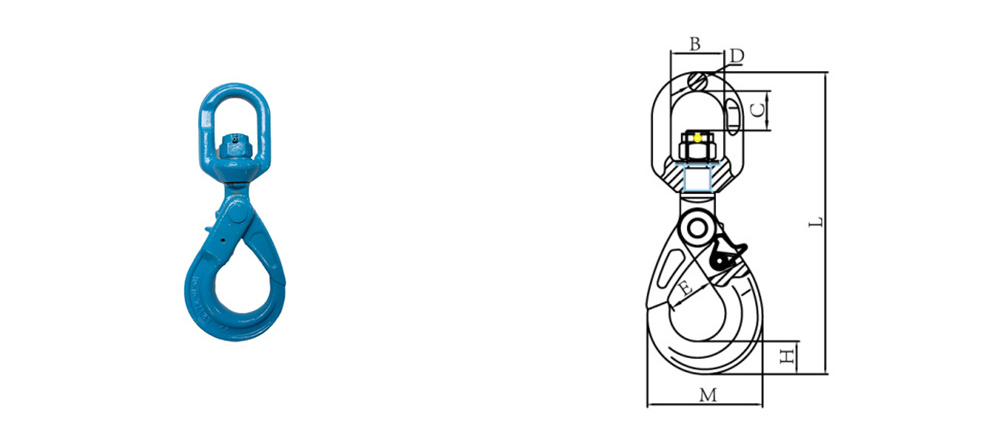

| ITEM | WEIGHT(KG) | WLL(T) | B.L(T) | B±1(mm) | C±1(mm) | D±0.5(mm) | E±1(mm) | H±1(mm) | M±2(mm) | L±3(mm) |
| 6-10 | 0.6 | 1.4 | 5.6 | 32.5 | 23 | 11.5 | 28 | 20 | 70 | 184 |
| 8-10 | 1.1 | 2.5 | 10 | 36 | 28.5 | 13 | 35.5 | 26 | 90 | 226 |
| 10-10 | 2 | 4 | 16 | 42 | 35 | 15.5 | 45 | 30 | 108 | 269 |
| 13-10 | 4 | 6.7 | 26.8 | 50 | 41 | 17 | 53.6 | 43 | 138.5 | 327 |
| 16-10 | 6.8 | 10 | 40 | 61 | 58 | 21.5 | 62 | 50.5 | 170 | 413 |
| 20-10 | 12.5 | 16 | 64 | 72 | 63 | 26 | 76.5 | 62 | 192.5 | 460 |
| 22-10 | 17.1 | 19 | 76 | 97 | 98 | 33 | 80 | 65 | 205 | 566 |
1.Forged super alloy steel.
2.25% stronger than G80.
3.Quenched and Tempered.
4.Suitable for G100 chains.
5.100% Magnetic powder inspection.
6.Individually proof load test at 2.5 times WLL.
7.Fatigue test at 1.5 times WLL for 20,000 cycles.
8.Strict breaking test.
9.Surface treatment: Powder coated.
