Forged super alloy steel.
25% stronger than G80.
Suitable for G100 chains.

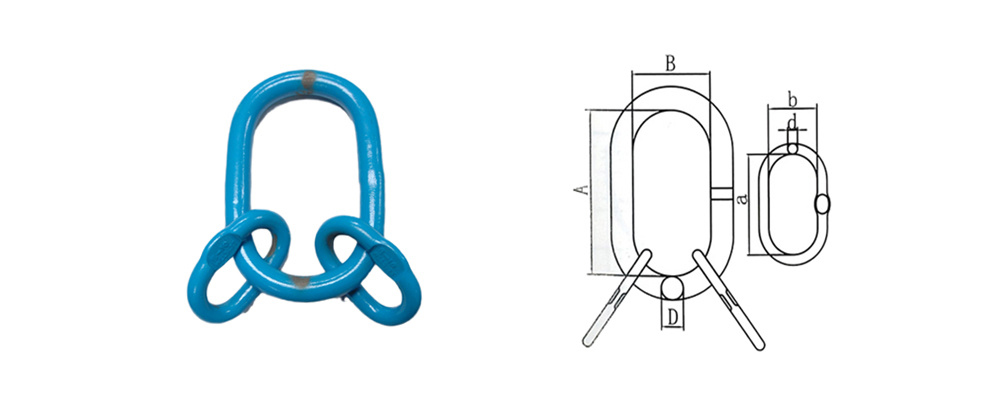

| ITEM | WEIGHT(KG) | WLL(T) | B.L(T) | A(mm) | B(mm) | D(mm) | a(mm) | b(mm) | d(mm) |
| 6-10 | 1.8 | 3.5 | 14 | 150±5 | 90±4 | 19±1.5 | 120±5 | 70±4 | 14±1.5 |
| 8-10 | 3 | 5 | 20 | 160±5 | 95±4 | 22±1.5 | 140±5 | 80±4 | 17±1.5 |
| 10-10 | 6.5 | 11.5 | 46 | 200±5 | 120±5 | 30±1.5 | 160±5 | 95±4 | 22±1.5 |
| 13-10 | 15 | 17 | 68 | 250±6 | 150±5 | 40±2 | 190±5 | 110±5 | 25±1.5 |
| 16-10 | 23 | 28 | 112 | 300±6 | 200±5 | 50±2 | 200±5 | 120±5 | 32±2 |
1.Forged super alloy steel.
2.25% stronger than G80.
3.Quenched and Tempered.
4.Suitable for G100 chains.
5.100% Magnetic powder inspection.
6.Individually proof load test at 2.5 times WLL.
7.Fatigue test at 1.5 times WLL for 20,000 cycles.
8.Strict breaking test.
9.Surface treatment: Powder coated.
