Forged super alloy steel.
25% stronger than G80.
Suitable for G100 chains.

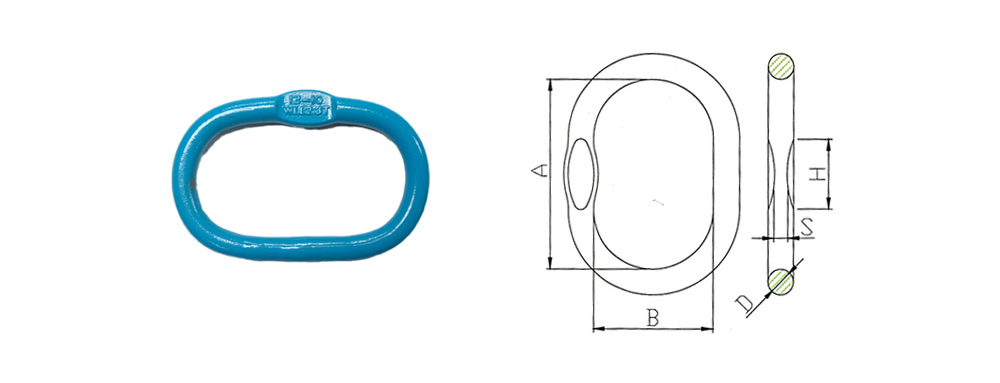

| ITEM | WEIGHT(KG) | WLL(T) | A(mm) | B(mm) | D(mm) | SxH |
| 06-10 | 0.23 | 1.4 | 100 | 60 | 11±0.5 | 6＋0.5x22 |
| 86-10 | 0.4 | 2.5 | 120 | 70 | 13±1 | 7＋0.5x25 |
| 108-10 | 0.7 | 4 | 140 | 80 | 17±1 | 8＋0.5x28 |
| 1310-10 | 1.5 | 7.5 | 160 | 95 | 22±1 | 11±.0.5x35 |
| 16-10 | 2.2 | 10 | 190 | 110 | 25±1 | 13±.0.5x43 |
| 1613-10 | 2.51 | 12.5 | 180 | 100 | 27＋1 | 14±.0.5x46 |
| 2016-10 | 5.1 | 17 | 240 | 140 | 32＋1 | 17±.0.5x55 |
| 2220-10 | 7.2 | 25 | 250 | 150 | 38＋1－2 | 21±.0.5x65 |
| 2622-10 | 8.3 | 26.5 | 250 | 150 | 41＋1－2 | 23±.0.5x73 |
| 3226-10 | 11.8 | 37 | 300 | 180 | 45＋1－2 | 27±.0.5x85 |
1.Forged super alloy steel.
2.25% stronger than G80.
3.Quenched and Tempered.
4.Suitable for G100 chains.
5.100% Magnetic powder inspection.
6.Individually proof load test at 2.5 times WLL.
7.Fatigue test at 1.5 times WLL for 20,000 cycles.
8.Strict breaking test.
9.Surface treatment: Powder coated.
