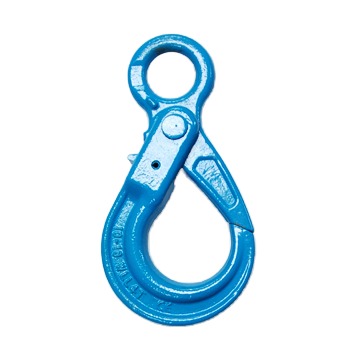

Forged super alloy steel.
25% stronger than G80.
Suitable for G100 chains.

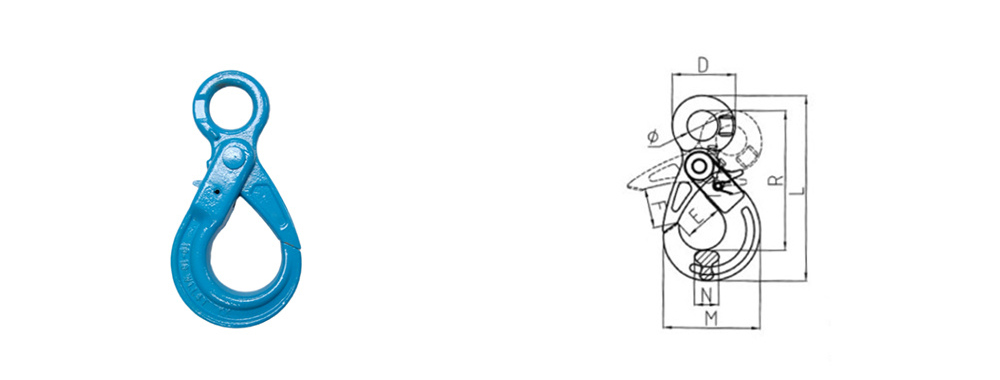

| ITEM | WEIGHT(KG) | WLL(T) | B.L(T) | φ(mm) | D±1(mm) | E±1(mm) | F±1(mm) | R±2(mm) | M±2(mm) | N±1(mm) | L±3(mm) |
| 6-10 | 0.5 | 1.4 | 5.6 | 21 | 43 | 28 | 31 | 110 | 70 | 15 | 141 |
| 7-10 | 0.72 | 1.9 | 7.6 | 27 | 52 | 31 | 34 | 127 | 81 | 12 | 162 |
| 8-10 | 0.9 | 2.5 | 10 | 27 | 52 | 36 | 40 | 137 | 90 | 20 | 175 |
| 10-10 | 1.5 | 4 | 16 | 34.5 | 64.5 | 45 | 50 | 170 | 108 | 26 | 212.5 |
| 13-10 | 2.7 | 6.7 | 26.8 | 40 | 80 | 53.6 | 66 | 209 | 138.5 | 32.5 | 270 |
| 16-10 | 5.7 | 10 | 40 | 50 | 104 | 61 | 75 | 256 | 170.5 | 38 | 333 |
| 20-10 | 7.9 | 16 | 64 | 60 | 120 | 76.5 | 80 | 277 | 192.5 | 50 | 369 |
| 22-10 | 11.2 | 19 | 76 | 70 | 134 | 80 | 104.6 | 319 | 205 | 52 | 417 |
1.Forged super alloy steel.
2.25% stronger than G80.
3.Quenched and Tempered.
4.Suitable for G100 chains.
5.100% Magnetic powder inspection.
6.Individually proof load test at 2.5 times WLL.
7.Fatigue test at 1.5 times WLL for 20,000 cycles.
8.Strict breaking test.
9.Surface treatment: Powder coated.
