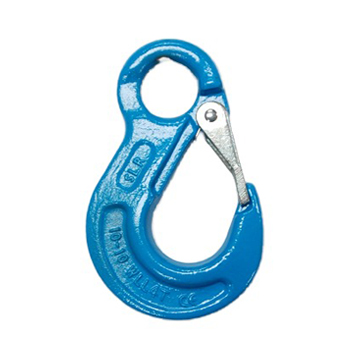

Forged super alloy steel.
25% stronger than G80.
Suitable for G100 chains.

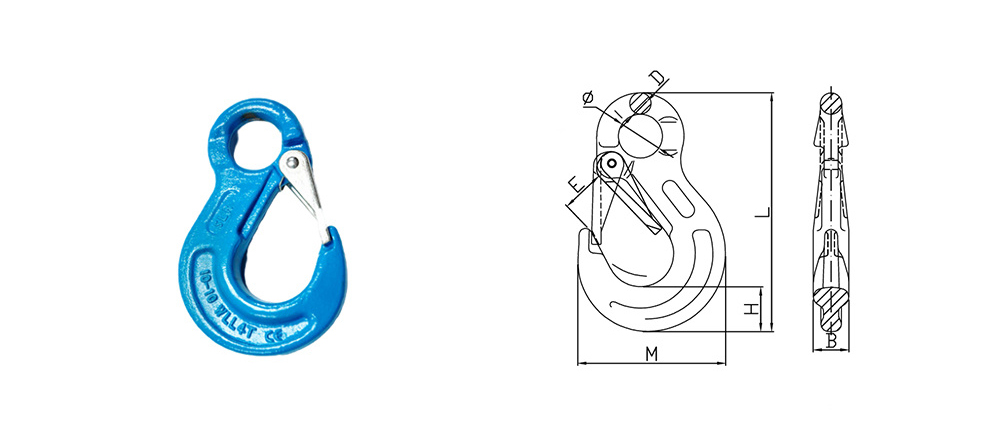

| ITEM | WEIGHT(KG) | WLL(T) | B.L(T) | B±1(mm) | D±1(mm) | E±2(mm) | H±1(mm) | φ±1(mm) | M±2(mm) | L±2.5(mm) |
| 6-10 | 0.32 | 1.4 | 5.6 | 16.5 | 10 | 18.5 | 21 | 20.5 | 68 | 111 |
| 7-10 | 0.4 | 1.9 | 7.6 | 15 | 11 | 25.5 | 26 | 25 | 86.9 | 137 |
| 8-10 | 0.6 | 2.5 | 10 | 19 | 11 | 25 | 27.5 | 25 | 87.6 | 137 |
| 10-10 | 1.2 | 4 | 16 | 26 | 16 | 29.5 | 32 | 35 | 106.4 | 171.5 |
| 13-10 | 2.2 | 6.7 | 26.8 | 33 | 19 | 38 | 43.5 | 43 | 134 | 219 |
| 16-10 | 3.5 | 10 | 40 | 40 | 24.5 | 46 | 50 | 51 | 158 | 260 |
| 20-10 | 6.2 | 16 | 64 | 48 | 27 | 52 | 56 | 55 | 190 | 298 |
| 22-10 | 11.5 | 19 | 76 | 50 | 29 | 66 | 62 | 60 | 214 | 330 |
| 26-10 | 12.2 | 26.5 | 106 | 60 | 35 | 73 | 75 | 70 | 245 | 376 |
| 32-10 | 17.5 | 39.3 | 157.2 | 71 | 39 | 87 | 89 | 81.5 | 270 | 458 |
1.Forged super alloy steel.
2.25% stronger than G80.
3.Quenched and Tempered.
4.Suitable for G100 chains.
5.100% Magnetic powder inspection.
6.Individually proof load test at 2.5 times WLL.
7.Fatigue test at 1.5 times WLL for 20,000 cycles.
8.Strict breaking test.
9.Surface treatment: Powder coated.
