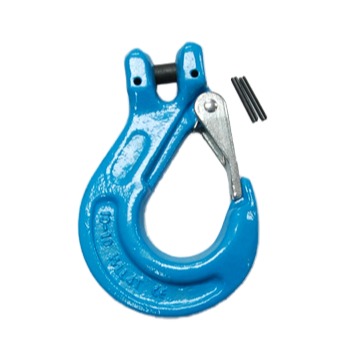

Forged super alloy steel.
25% stronger than G80.
Suitable for G100 chains.

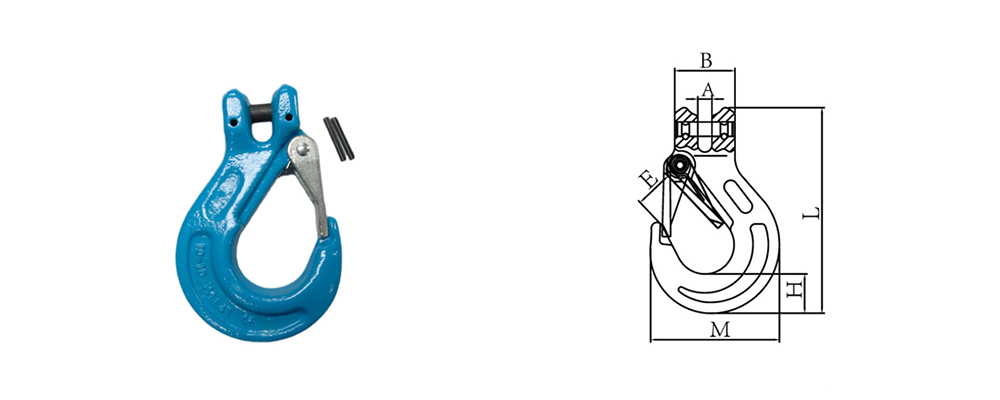

| ITEM | WEIGHT(KG) | WLL(T) | B.L(T) | A±0.5(mm) | B±1(mm) | E±1.5(mm) | H±1(mm) | M±2(mm) | L±2.5(mm) |
| 6-10 | 0.33 | 1.4 | 5.6 | 7.5 | 32 | 18.5 | 21 | 68.5 | 109 |
| 8-10 | 0.7 | 2.5 | 10 | 9.5 | 37 | 25 | 27.5 | 88 | 134 |
| 10-10 | 1.3 | 4 | 16 | 12 | 48 | 28 | 33.5 | 105.5 | 161.5 |
| 13-10 | 2.3 | 6.7 | 26.8 | 15 | 59 | 38 | 42 | 134 | 203 |
| 16-10 | 3.6 | 10 | 40 | 18.5 | 70 | 44 | 50 | 160.5 | 248 |
| 20-10 | 7 | 16 | 64 | 25 | 85 | 52 | 56 | 190.5 | 297 |
| 22-10 | 12.1 | 19 | 76 | 27 | 100 | 66 | 62 | 214.5 | 326 |
1.Forged super alloy steel.
2.25% stronger than G80.
3.Quenched and Tempered.
4.Suitable for G100 chains.
5.100% Magnetic powder inspection.
6.Individually proof load test at 2.5 times WLL.
7.Fatigue test at 1.5 times WLL for 20,000 cycles.
8.Strict breaking test.
9.Surface treatment: Powder coated.
