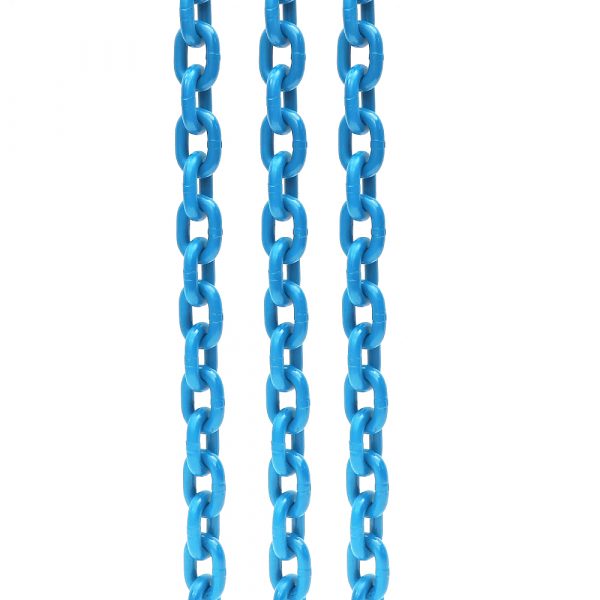

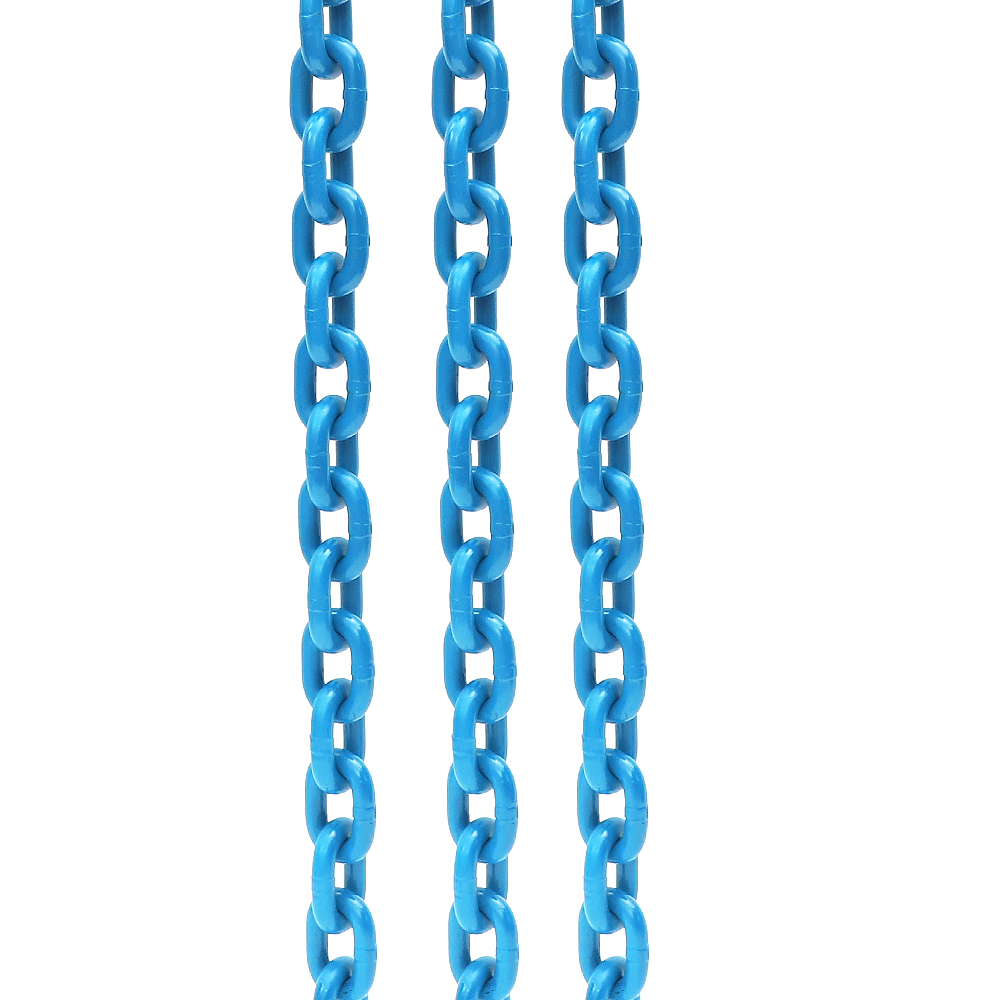

Super Alloy steel.
100% proof load tested and 100% calibrated.
| Diameter （mm） | Tolerance (+/- mm) | Inside Length （mm） | Min. Inside Width （mm） | Max. Outside Width （mm） | Weight kg/m | WLL (kn) | Proof Load (kn) | MBL (kn) |
| 6 | 0.24 | 18.00 | 7.80 | 22.20 | 0.8 | 14 | 35 | 56 |
| 7 | 0.28 | 21.00 | 9.10 | 25.90 | 1.1 | 19 | 45.6 | 76 |
| 8 | 0.32 | 24.00 | 10.40 | 29.60 | 1.5 | 25 | 62 | 100 |
| 10 | 0.40 | 30.00 | 13.00 | 37.00 | 2.4 | 39 | 98 | 157 |
| 13 | 0.52 | 39.00 | 16.90 | 48.10 | 4.0 | 66 | 165 | 265 |
| 16 | 0.64 | 48.00 | 20.80 | 59.20 | 6.0 | 100 | 251 | 402 |
| 18 | 0.90 | 54.00 | 23.40 | 66.60 | 7.5 | 127 | 317 | 508 |
| 19 | 0.90 | 57.00 | 24.70 | 70.3 | 8.4 | 140 | 337 | 562 |
| 20 | 1.00 | 60.00 | 26.00 | 74.00 | 9.3 | 157 | 392 | 628 |
| 22 | 1.10 | 66.00 | 28.60 | 81.40 | 11 | 190 | 475 | 760 |
1. Super Alloy steel.
2. Finish: Black treated or painted.
3. Manufacturer's test certificate can be supplied as required.
4. 100% proof load tested and 100% calibrated.
5. Every meter is stamped with manufacturer's ID Number, Grade Number can be marked as required.
