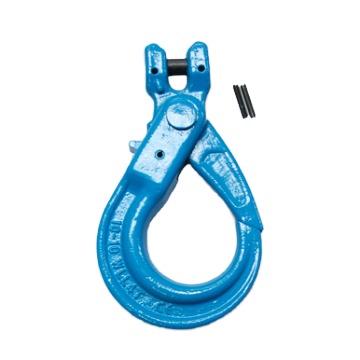

Forged super alloy steel.
25% stronger than G80.
Suitable for G100 chains.

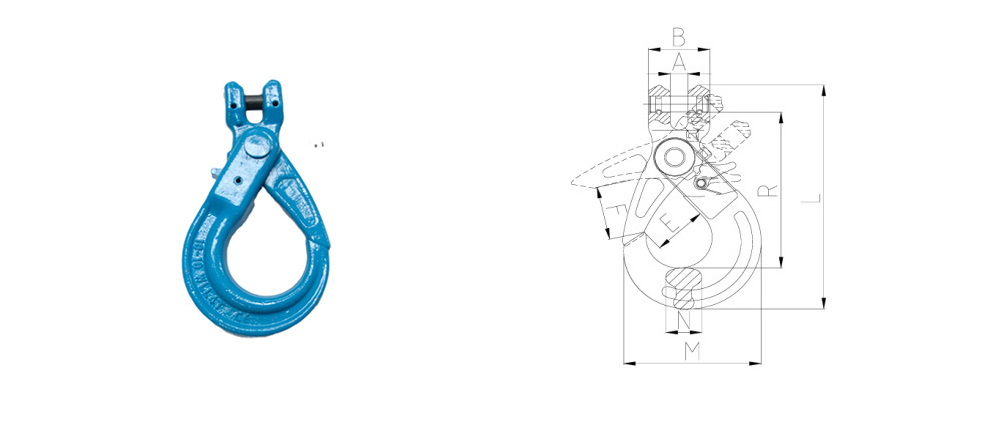

| ITEM | WEIGHT(KG) | WLL(T) | B.L(T) | A±0.5(mm) | B±1(mm) | E±1(mm) | F±1(mm) | R±2(mm) | M±2(mm) | N±1(mm) | L±3(mm) |
| 6-10 | 0.5 | 1.4 | 5.6 | 8 | 32 | 28 | 31 | 96 | 70 | 15 | 131 |
| 8-10 | 0.9 | 2.5 | 10 | 9.5 | 36 | 36 | 40 | 121 | 90 | 20 | 163 |
| 10-10 | 1.6 | 4 | 16 | 12 | 46 | 45 | 50 | 144 | 109 | 26 | 196.5 |
| 13-10 | 2.9 | 6.7 | 26.8 | 15 | 59 | 53.5 | 66 | 182 | 138.5 | 32.5 | 251 |
| 16-10 | 5.8 | 10 | 40 | 18.5 | 70 | 62 | 75 | 220 | 170.5 | 38 | 303 |
| 20-10 | 8.6 | 16 | 64 | 25 | 85 | 76.5 | 80 | 235 | 192.5 | 50 | 337 |
| 22-10 | 12.1 | 19 | 76 | 25.5 | 98 | 80 | 104.6 | 271 | 205 | 52 | 386 |
1.Forged super alloy steel.
2.25% stronger than G80.
3.Quenched and Tempered.
4.Suitable for G100 chains.
5.100% Magnetic powder inspection.
6.Individually proof load test at 2.5 times WLL.
7.Fatigue test at 1.5 times WLL for 20,000 cycles.
8.Strict breaking test.
9.Surface treatment: Powder coated.
Forged super alloy steel.
25% stronger than G80.
Suitable for G100 chains.
Forged super alloy steel.
25% stronger than G80.
Suitable for G100 chains.
Alloy steel.
100% proof load tested and 100% calibrated.
Super alloy steel.
Suitable for G80 EN818-2 chains.
