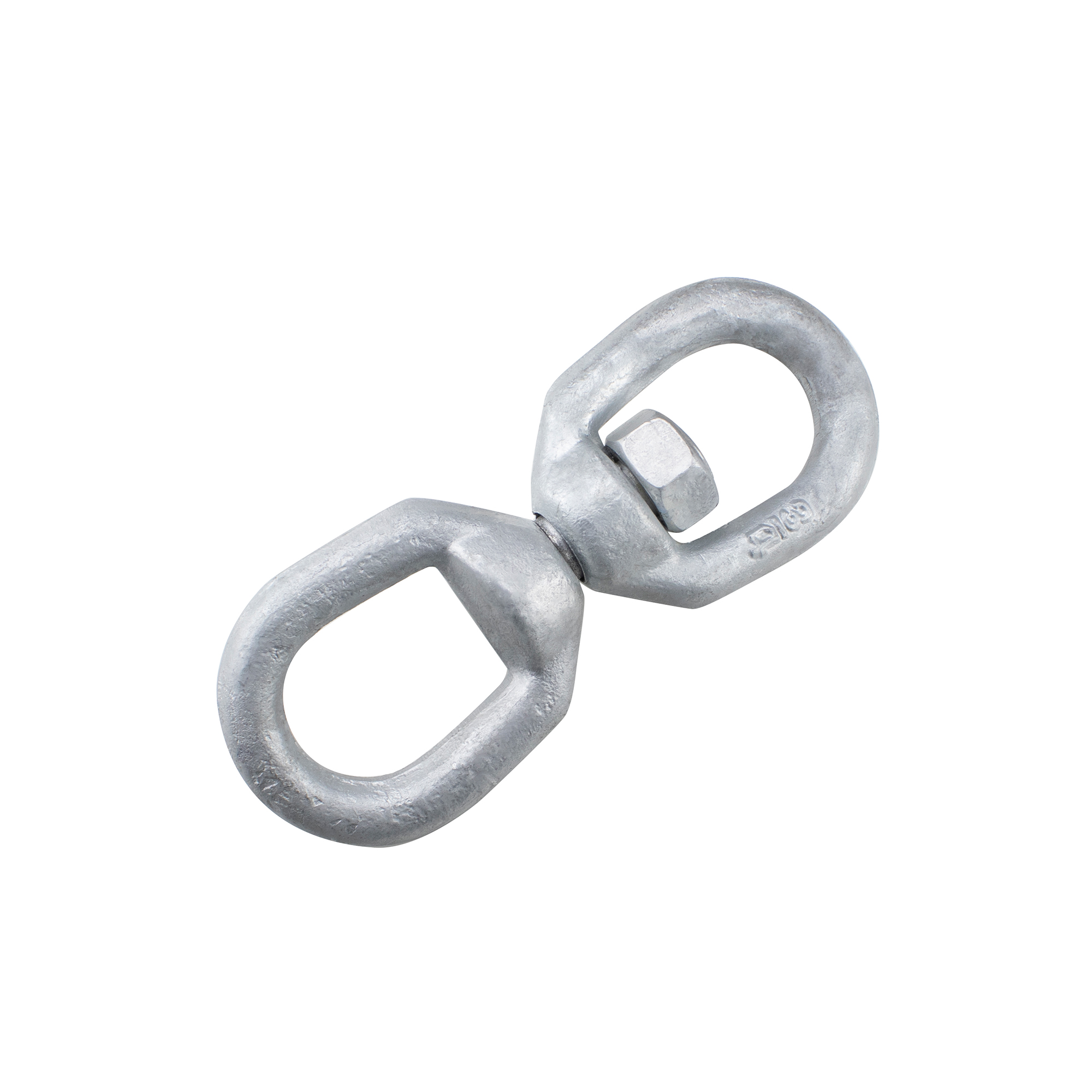

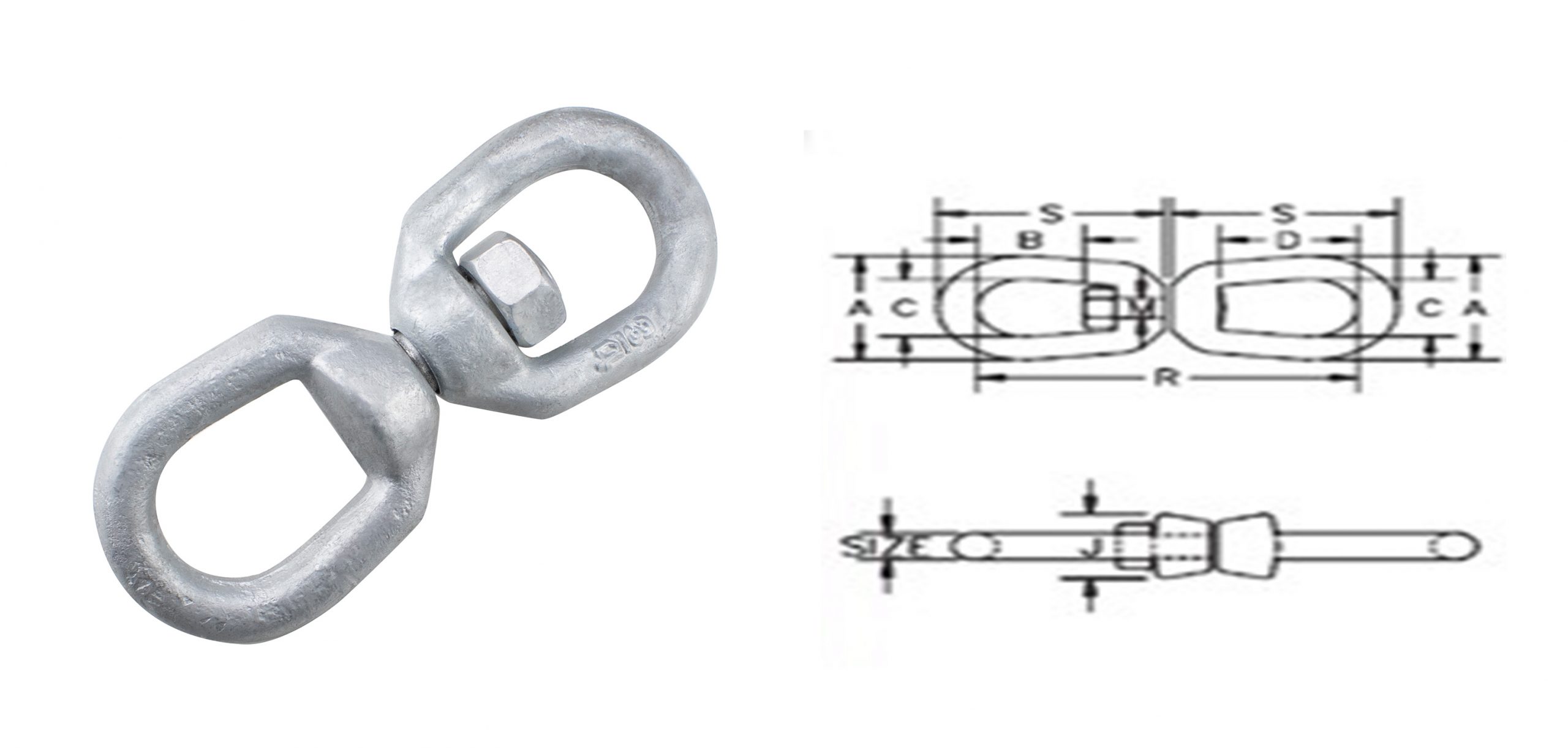

| SIZE (inch) | WLL (lbs) | WEIGHT (kg) | Dimensions(mm) | |||||||
| A | B | C | D | J | M | R | S | |||
| 1/4 | 850 | 0.10 | 31.8 | 17.5 | 19.1 | 26.9 | 17.5 | 7.85 | 74.5 | 42.9 |
| 5/16 | 1250 | 0.18 | 41.4 | 20.6 | 25.4 | 31.8 | 20.6 | 9.65 | 90.0 | 52.0 |
| 3/8 | 2250 | 0.32 | 51.0 | 23.9 | 31.8 | 38.1 | 25.4 | 12.7 | 109 | 63.5 |
| 1/2 | 3600 | 0.60 | 63.5 | 33.3 | 38.1 | 51.0 | 33.3 | 16.0 | 138 | 81.0 |
| 5/8 | 5200 | 1.13 | 76.0 | 39.5 | 44.5 | 60.5 | 38.1 | 19.1 | 167 | 98.5 |
| 3/4 | 7200 | 1.82 | 89.0 | 44.5 | 51.0 | 67.0 | 47.8 | 22.4 | 183 | 109 |
| 7/8 | 10000 | 2.83 | 102 | 52.0 | 57.0 | 77.5 | 54.0 | 25.4 | 213 | 127 |
| 1 | 12500 | 4.06 | 114 | 58.5 | 63.5 | 89.0 | 60.5 | 28.7 | 245 | 146 |
| 1.1/4 | 18000 | 7.42 | 143 | 68.5 | 79.5 | 93.5 | 76.0 | 41.4 | 291 | 172 |
| 1.1/2 | 45200 | 20.8 | 178 | 98.5 | 102 | 106 | 102 | 57.0 | 435 | 254 |
1.Meet the performance requirements of Federal Specification RR-C-271D, Type VII, Class 2, except for those provisions required of the contractor.
2.Surface: hot dip galvanized.
3.Ultimate load is 5 times of Working Load Limit.
Conform to Federal Specification RR-C-271D.
Hot dip galvanized.
Conform to Federal Specification RR-C-271D.
Hot dip galvanized.
Super carbon steel and alloy steel.
Quenched and Tempered.
Super carbon steel and alloy steel.
Quenched and Tempered.
