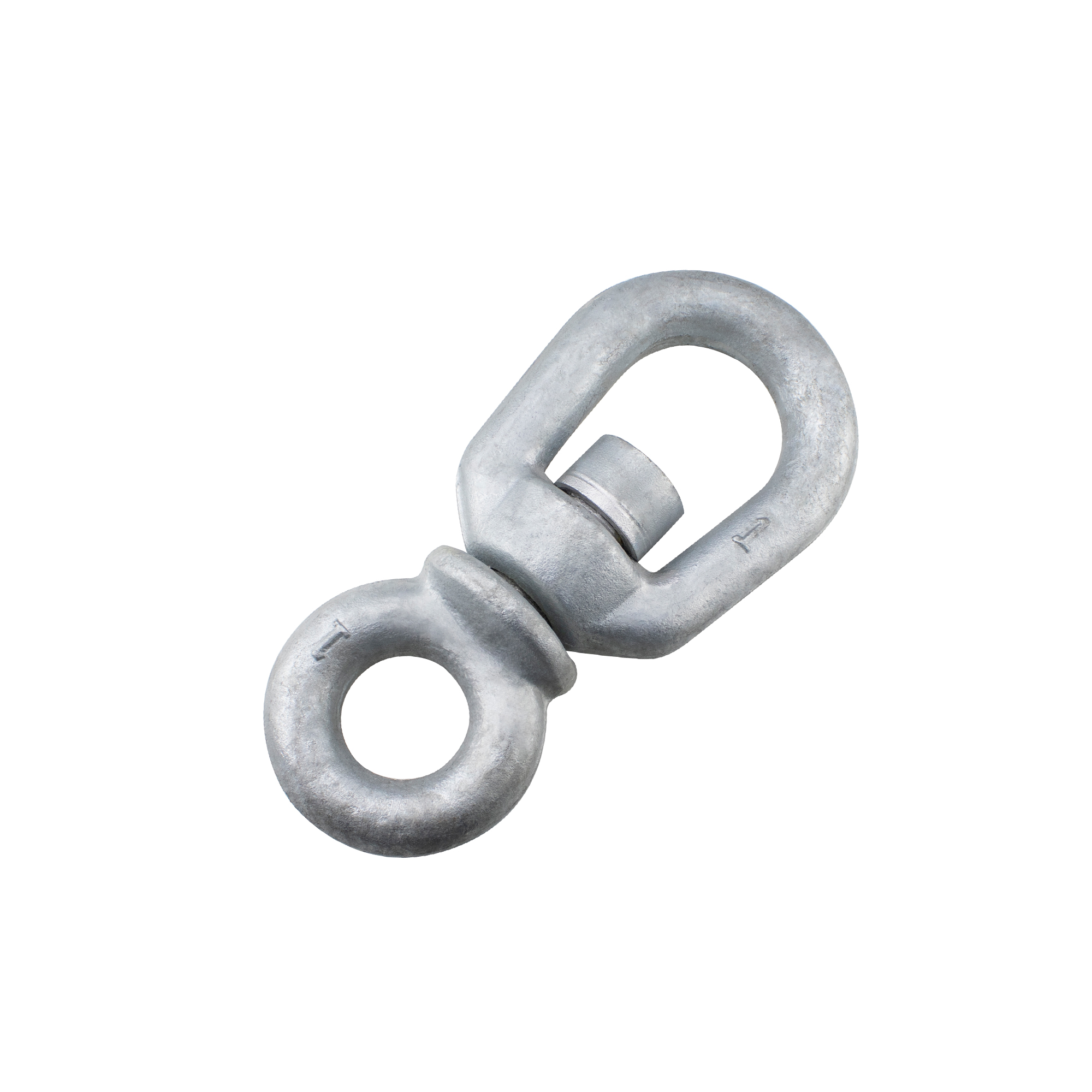

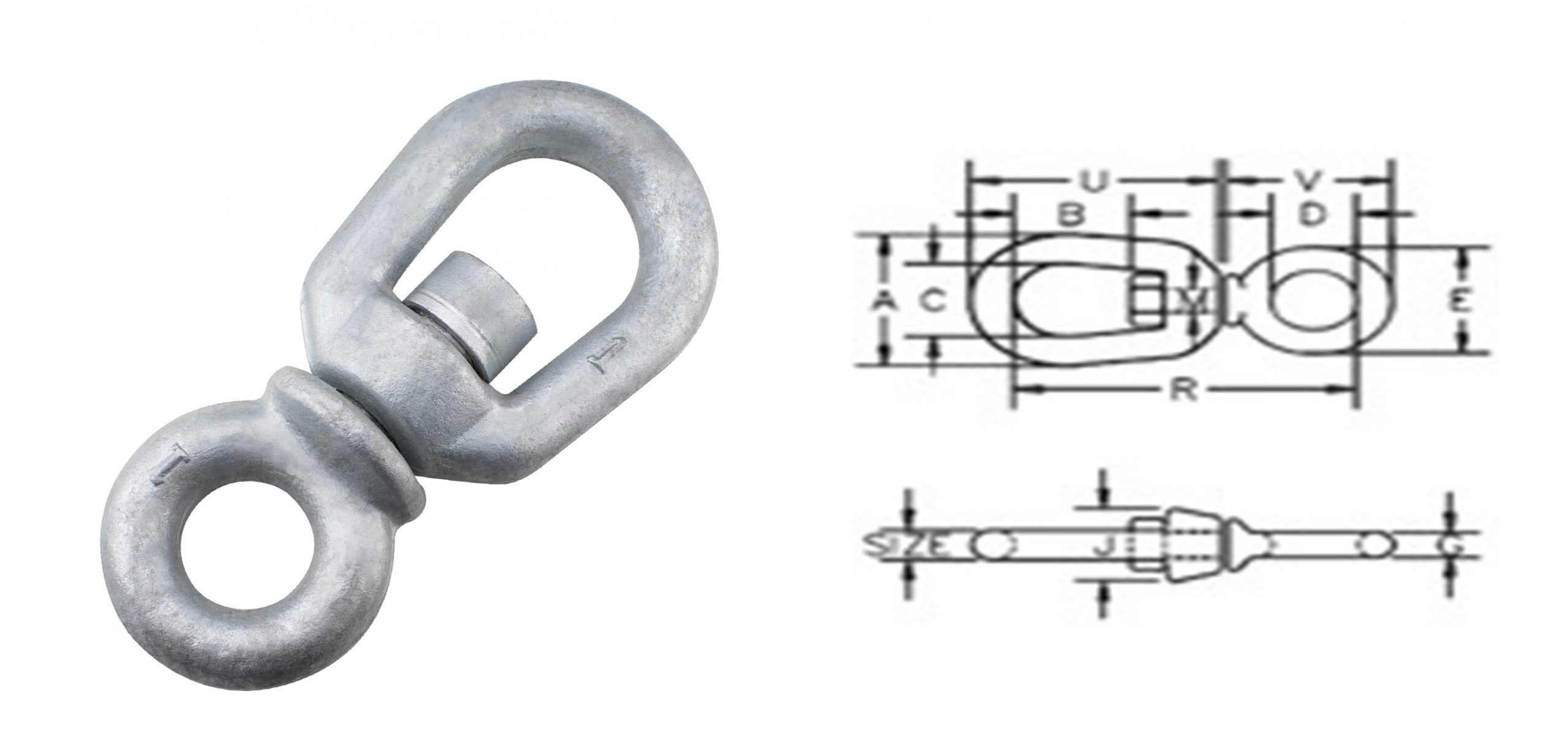

| SIZE (inch) | WLL (lbs) | WEIGHT (kg) | Dimensions(mm) | ||||||||||
| A | B | C | D | E | G | J | M | R | U | V | |||
| 1/4 | 850 | 0.06 | 31.8 | 17.5 | 19.1 | 15.7 | 28.4 | 6.35 | 17.5 | 7.85 | 57.0 | 42.9 | 31.8 |
| 5/16 | 1250 | 0.11 | 6.35 | 41.4 | 20.6 | 25.4 | 19.1 | 35.1 | 7.85 | 20.6 | 69.0 | 52.5 | 37.3 |
| 3/8 | 2250 | 0.24 | 51.0 | 23.9 | 31.8 | 25.4 | 44.5 | 9.65 | 25.4 | 12.7 | 87.5 | 63.5 | 47.8 |
| 1/2 | 3600 | 0.51 | 63.5 | 33.3 | 38.1 | 31.8 | 57.0 | 12.7 | 33.3 | 16.0 | 108 | 81.0 | 62.0 |
| 5/8 | 5200 | 0.95 | 76.2 | 39.6 | 44.5 | 38.1 | 70.0 | 15.8 | 38.1 | 19.1 | 130 | 98.5 | 74.5 |
| 3/4 | 7200 | 1.40 | 89.0 | 44.5 | 51.0 | 44.5 | 82.5 | 19.1 | 47.8 | 22.4 | 147 | 125 | 88.0 |
| 1 | 12500 | 3.3 | 112.7 | 57 | 61.5 | 61.5 | 115 | 21.2 | 56.7 | 29.3 | 214.8 | 146 | 119 |
1.Meet the performance requirements of Federal Specification RR-C-271D, Type VII, Class 1, except for those provisions required of the contractor.
2.Surface: hot dip galvanized.
3.Ultimate load is 5 times of Working Load Limit.
Conform to Federal Specification RR-C-271D.
Hot dip galvanized.
Conform to Federal Specification RR-C-271D.
Hot dip galvanized.
Super carbon steel and alloy steel.
Quenched and Tempered.
Super carbon steel and alloy steel.
Quenched and Tempered.
