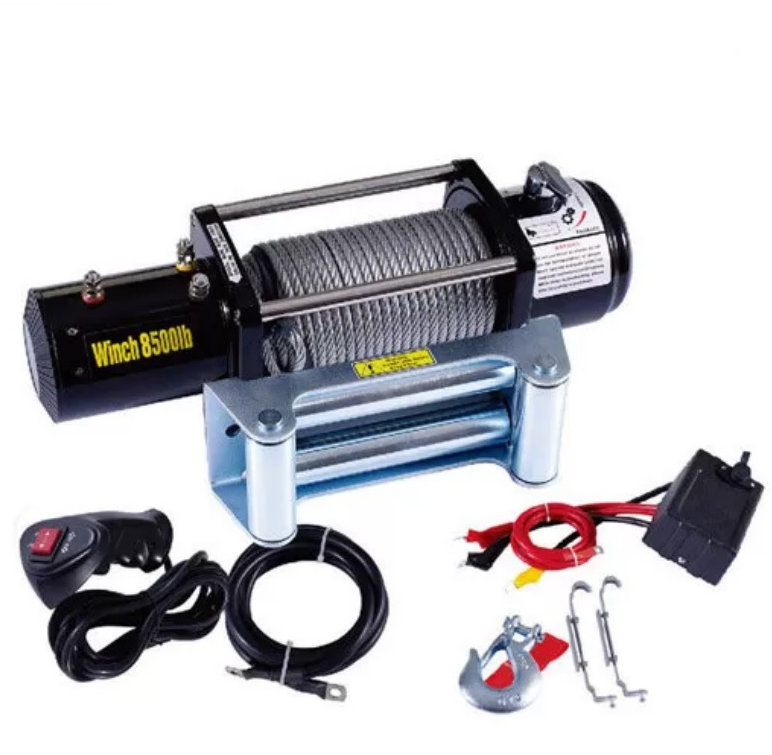

Model

 EW8500C(12V/24V)

Rated line pull

 8500lb (3856kg) single line

Motor

 4.0KW/5.5HP 12V, Permanent magnet

Control

 Remote switch, 12ft (3.7m) lead

Gear train

 3 Stage Planetary

Gear reductions ratio

 195.8:1

Clutch

 Sliding Ring Gear

Braking Action

 Two-way, Automatic ln-The-Drum

Drum Dimensions

 φ2.5"x8.8"(φ63.5mmx224mm)

Cable (Dia X L)

 φ5/16"x94' (φ8.1mmx28m)

Fairlead

 4-Way Roller Fairlead

Wireless Remote Control

 Optional

Battery

 Recommended 650CCA minimum for winching

Battery Leads

 2 gauge, 72" (1.83m)

Overall dimensions

 21.1”x6.3"x8.6" (537x160x218mm)

Mounting Bolt Pattern

 254mmx114.3mm

N.W. / G.W.

 35kg / 37kg
