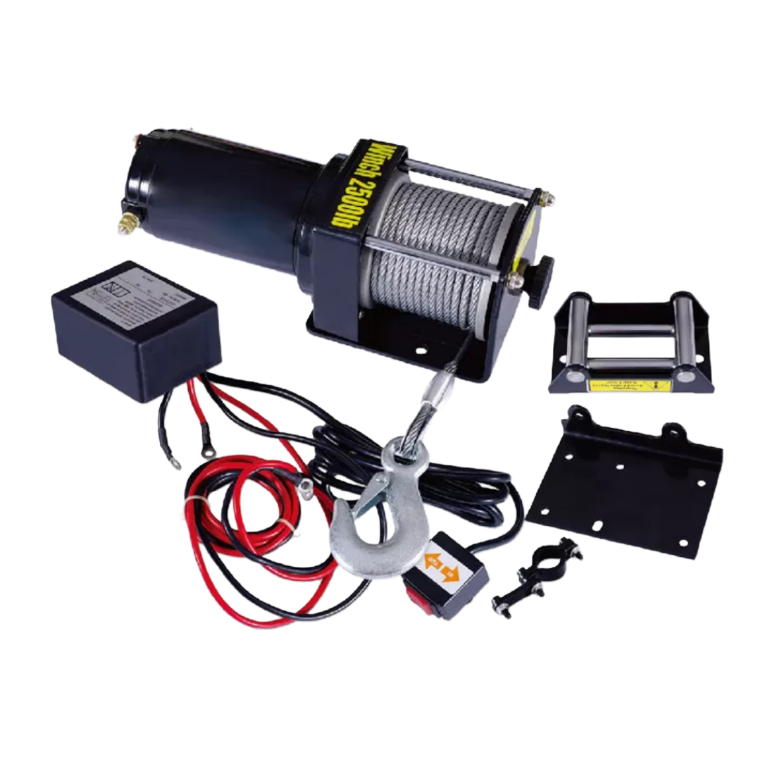

Model | EW2500C-1B(12V) |
Rated line pull | 2500lb (1133kg) single line |
Motor | 0.8KW/1.1HP 12V, permanent magnet |
Gear reductions ratio | 153:1 |
Drum Dimensions | φ1.24"x2.88” (φ31.5mmx73mm) |
Cable (Dia X L) | φ3/16”x45’ (φ4.76mmx14m) |
Overall dimensions | 11.4”x4.1"x4.1" (290x105x105mm) |
Mounting bolt pattern | 3.13" (79.5mm) |
N.W. / G.W. | 17kg / 18kg |
Apply to: Boat trailer, Warehouse, Building, Wharf, Etc.
Feature:
1.Features an all-metal planetary gear train plus mechanical and dynamic brake.
2.Free spooling clutch with ergonomic control.
3.Sealed solenoids guarantee all-weather protection.
4.Sealed handle switch and 10 feet remote.
5.Including roller fairlead and mounting plate.
