33034

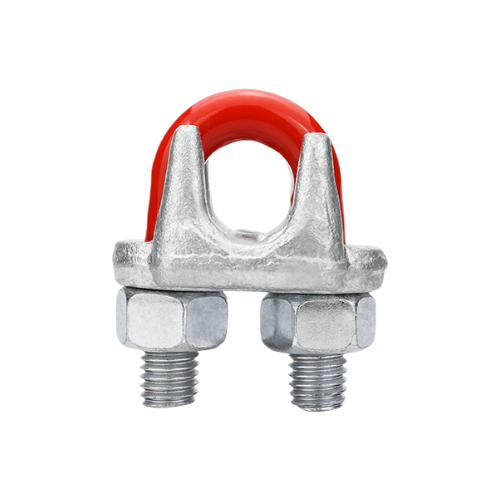

Drop Forged US Type Wire Rope Clip Conform to Federal Spec. FF-C-450 Type Ⅰ, Class Ⅰ

Conform to US Federal Spec. FF-C-450.
Mild steel.

Product Details

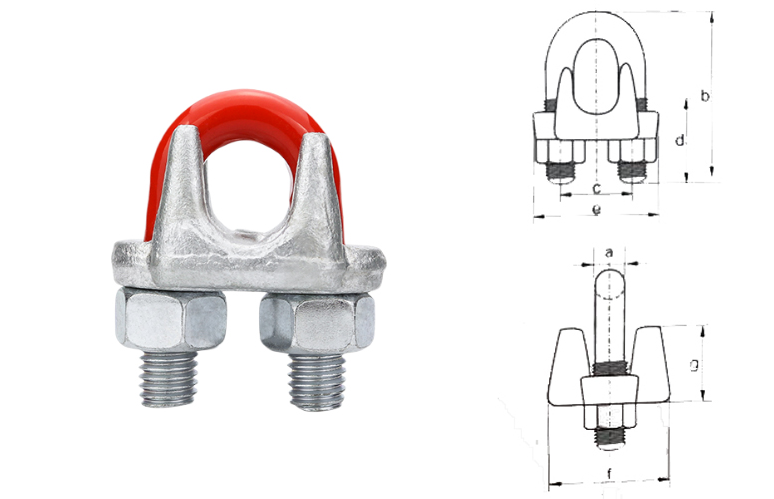

SIZE	a	b	c	d	e	f	g	torque	Weight
in	mm	mm	mm	mm	mm	mm	mm	Nm	kg
1/8	5	24	12	11	24	21	10	6.1	0.03
3/16	6	31	14	13	29	24	13	10.2	0.04
1/4	8	34	19	13	37	30	17	20.3	0.09
5/16	10	45	22	19	43	33	18	40.7	0.13
3/8	11	49	26	19	49	42	25	61	0.2
7/16	12	60	30	25	58	46	26	88	0.32
1/2	13	61	30	26	58	48	27	88	0.33
9/16	14	72	33	32	63	52	31	129	0.45
5/8	14	74	33	32	64	52	33	129	0.46
3/4	16	86	38	37	72	57	37	176	0.68
7/8	19	98	45	40	80	62	40	305	0.96
1	19	108	48	46	88	67	44	305	1.18
1.1/8	19	117	51	51	91	72	48	305	1.28
1.1/4	22	130	59	54	105	79	56	488	1.9
1.3/8	22	140	60	59	108	79	58	488	2
1.1/2	22	147	66	60	112	86	64	488	2.35
1.5/8	22	161	70	67	132	92	67	583	3.1
1.3/4	29	175	78	74	134	97	78	800	4.2
2	32	195	86	78	152	113	87	1017	5.8
2.1/4	32	208	98	81	162	116	100	1017	7.3
2.1/2	32	227	105	87	168	119	113	1017	8.25
2.3/4	32	243	112	91	174	127	124	1017	10.5
3	38	271	121	104	194	135	136	1627	14.2
3.1/2	38	311	140	114	213	157	152	1627	18.1

1. Conform to US Federal Spec. FF-C-450.
2. Material: mild steel.
3. Finish: Hot dip galv. body, powder coated U-bolt.
