Forged, quenched and tempered.
High tensile strength.

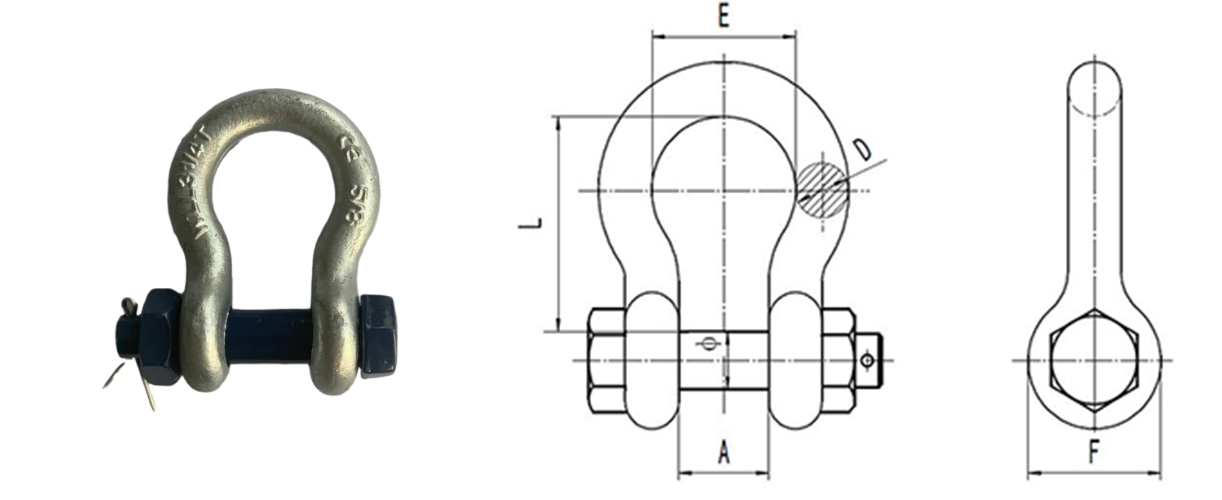

| Size | WLL(T） | A | L | φ | D | E | F |
| 3/8 | 1 | 16.7±1.5 | 36.6±3.3 | 11±0.55 | 9.5+1.0/-0.3 | 26.0±1.3 | 23.1+1.0/-0.5 |
| 7/16 | 1.5 | 18.9±1.5 | 43.0±3.3 | 12.5±0.6 | 11.1+1.0/-0.3 | 29.5±1.5 | 26.9+1.2/-0.5 |
| 1/2 | 2 | 20.6±1.5 | 47.8±3.3 | 16.0±0.8 | 12.7+1.2/-0.5 | 33.0±1.65 | 32.0+2.0/-0.8 |
| 5/8 | 3.25 | 27±1.5 | 60.5±3.3 | 19.1±0.96 | 15.9+1.2/-0.5 | 43.0±2.15 | 38.1+2.2/-0.8 |
| 3/4 | 4.75 | 31.8±1.5 | 71.4±6.4 | 22.0±1.1 | 19.1+1.5/-0.5 | 51.0±2.55 | 46.0+2.5/-1.0 |
| 7/8 | 6.5 | 36.5±2 | 84.1±6.4 | 25.0±1.25 | 22.2+2.0/-0.5 | 58.0±2.9 | 53.0+3.0/-1.0 |
| 1 | 8.5 | 42.9±2.5 | 95.3±6.4 | 28.0±1.4 | 25.4+2.5/-0.5 | 68.0±3.4 | 60.5+3.5/-1.0 |
| 1.1/8 | 9.5 | 46.0±2.5 | 108.0±6.4 | 32.0±1.6 | 28.6+2.5/-0.5 | 74.0±3.7 | 68.5+4.0/-1.5 |
| 1.1/4 | 12 | 51.6±3.3 | 119.2±6.4 | 35±1.75 | 31.8+2.5/-0.5 | 82.0±4.1 | 76.0+4.0/-1.5 |
| 1.3/8 | 13.5 | 57.2±3.3 | 133.5±6.4 | 38.1±1.9 | 34.9+3/-0.8 | 89.0±4.6 | 84.0+5.0/-2.0 |
| 1.1/2 | 17 | 60.3±3.3 | 146.1±6.4 | 42±2.1 | 38.1+3/-0.8 | 98.0±4.9 | 92.0+5.0/-2.0 |
| 1.3/4 | 25 | 73.0±3.3 | 177.8±6.4 | 50.8±2.5 | 44.5+3/-1 | 127.0±6.35 | 106.0+6.0/-3.0 |
| 2 | 35 | 82.6±3.3 | 197.0±6.4 | 57.2±2.8 | 50.8+3/-1 | 146.0±7.3 | 122.0+6.0/-3.0 |
| 2.1/2“ | 55 | 105.0±6.4 | 266.7±6.4 | 70.0±3.5 | 63.5+4/-2 | 184.0±9.2 | 145.0+10.0/-3.0 |
Forged, quenched and tempered.
High tensile strength.
1. Forged-Quenched and Tempered.
2. Surface: Hot dip galvanized body & painted pin.
3. Proof Load is 2 times of WLL, minimum breaking load is 6 times of WLL.
4. Marking: SIZE, CE, WLL and other marking according to requirement.
5. Capacity: 1/3t to 150t, shackles 85T and larger with alloy body and pin.
6. Square head pin shackle available.
Commercial type shackles.
