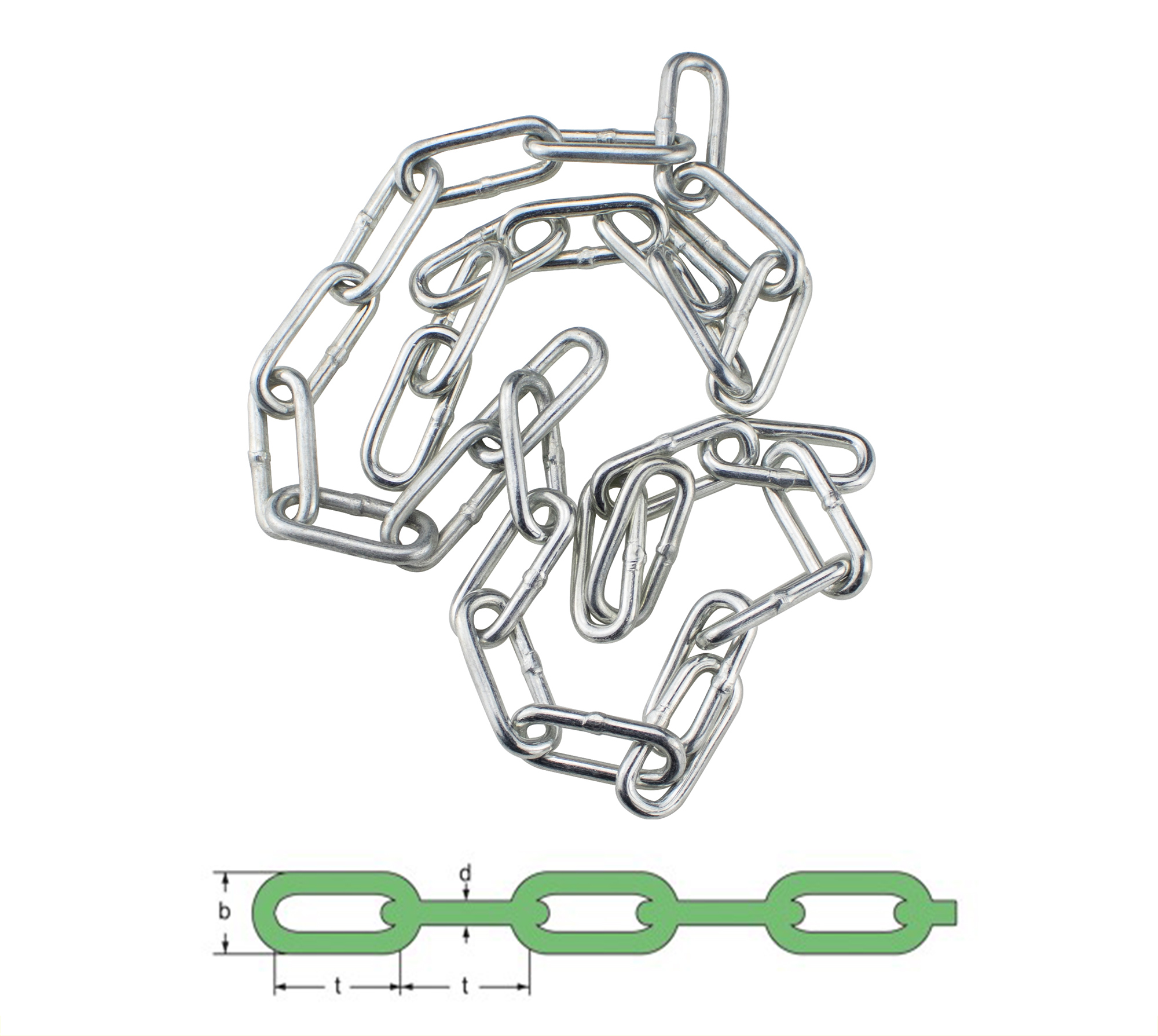

| SIZE(d) | INSIDE LENGTH(t) | OUTSIDE WIDTH(b) | WORKING LOAD | TEST LOAD | BREAKING LOAD | WEIGHT PER M | |||
| MM | +/-MM | MM | +/-MM | MM | +/-MM | KG | N | N | KG |
| 2 | 0.5 | 22 | 1 | 8 | 0.4 | 25 | 800 | 1250 | 0.06 |
| 2.5 | 0.5 | 24 | 1.1 | 10 | 0.5 | 40 | 800 | 2000 | 0.1 |
| 3 | 0.5 | 26 | 1.2 | 12 | 0.6 | 55 | 1050 | 3200 | 0.15 |
| 3.5 | 0.5 | 28 | 1.3 | 14 | 0.7 | 80 | 1540 | 3850 | 0.2 |
| 4 | 0.5 | 32 | 1.5 | 16 | 0.8 | 100 | 2500 | 6500 | 0.27 |
| 4.5 | 0.5 | 34 | 1.7 | 18 | 0.9 | 128 | 3000 | 8000 | 0.35 |
| 5 | 0.5 | 35 | 1.8 | 20 | 1 | 160 | 4000 | 10000 | 0.43 |
| 5.5 | 0.5 | 38.5 | 1.8 | 22 | 1.1 | 195 | 4200 | 10500 | 0.52 |
| 6 | 0.5 | 42 | 2 | 24 | 1.2 | 200 | 5000 | 12000 | 0.63 |
| 7 | 0.5 | 49 | 2.5 | 28 | 1.4 | 300 | 7500 | 19000 | 0.86 |
| 8 | 0.5 | 52 | 2.5 | 32 | 1.6 | 400 | 10000 | 25000 | 1.1 |
| 8.5 | 0.5 | 56 | 2.8 | 34 | 1.7 | 460 | 10200 | 25500 | 1.25 |
| 9 | 0.5 | 59 | 3 | 36 | 1.8 | 530 | 10500 | 32000 | 1.41 |
| 10 | 1 | 65 | 3.2 | 40 | 2 | 630 | 16000 | 40000 | 1.75 |
| 11 | 1 | 72 | 3.4 | 44 | 2 | 790 | 15800 | 47500 | 2.1 |
| 12 | 1 | 78 | 3.6 | 48 | 2.3 | 940 | 18800 | 56500 | 2.55 |
| 13 | 1 | 82 | 4 | 52 | 2.5 | 1000 | 25000 | 63000 | 2.95 |
| 16 | 1 | 100 | 5 | 64 | 3.2 | 1600 | 40000 | 100000 | 4.45 |
| 18 | 1 | 113 | 5.2 | 70 | 3.2 | 2120 | 42300 | 127000 | 5.65 |
| 19 | 1 | 119 | 5.6 | 72 | 3.4 | 2370 | 47300 | 142000 | 6.26 |
| 20 | 1 | 120 | 6 | 75 | 3.8 | 2500 | 50000 | 160000 | 7 |
| 22 | 1 | 127 | 6 | 82 | 4 | 3170 | 63300 | 190000 | 8.55 |
| 25 | 1 | 140 | 6.6 | 85 | 4.2 | 4090 | 81700 | 245000 | 10.9 |
| 28 | 1 | 152 | 7 | 96 | 4.7 | 6000 | 120000 | 300000 | 13.9 |
| 32 | 1 | 171 | 7.8 | 108 | 5.2 | 8000 | 160000 | 400000 | 18.2 |
