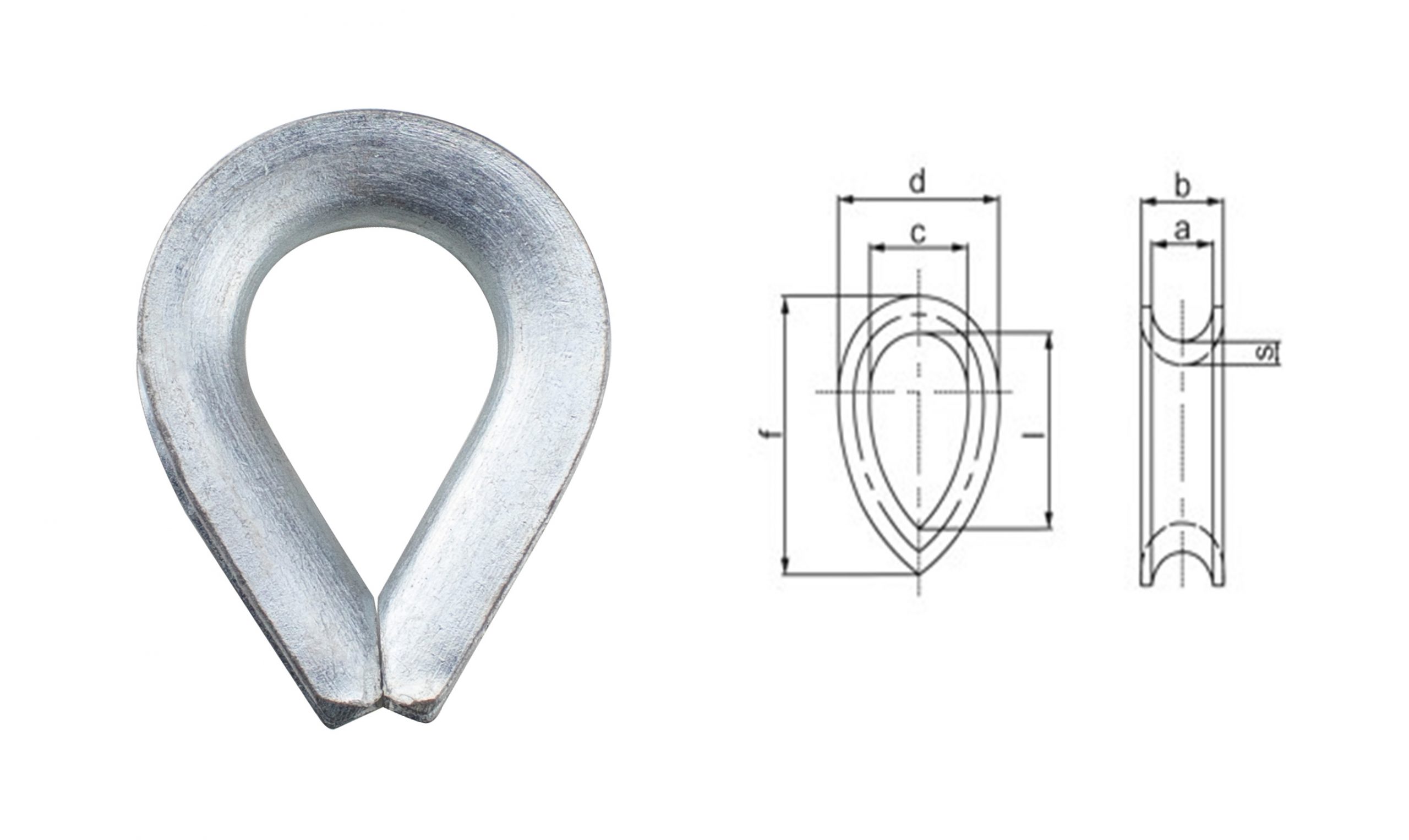

| SIZE | a | b | c | d | f | l | Weight |
| mm | mm | mm | mm | mm | mm | kg | |
| 1/4" | 6.4 | 11.5 | 18 | 34 | 46 | 26 | 0.04 |
| 5/16" | 7.9 | 12.7 | 22.2 | 38 | 52 | 33.4 | 0.06 |
| 3/8" | 10.9 | 14.3 | 25.4 | 47.6 | 64 | 38 | 0.07 |
| 7/16" | 12.7 | 17.5 | 28.6 | 52 | 73 | 41 | 0.10 |
| 1/2" | 13 | 20.6 | 31.7 | 58 | 79.4 | 44 | 0.13 |
| 9/16" | 14.5 | 20.6 | 31.7 | 58 | 79.4 | 44 | 0.15 |
| 5/8" | 16.1 | 22.2 | 41.3 | 74.5 | 95.8 | 59 | 0.26 |
| 11/16" | 18 | 28.6 | 44.5 | 79.4 | 108 | 67 | 0.35 |
| 3/4" | 20.6 | 29.6 | 50.8 | 92 | 124 | 73 | 0.46 |
| 7/8" | 22.2 | 31.7 | 56 | 102 | 133 | 83 | 0.62 |
| 15/16" | 25.4 | 33.4 | 64 | 110 | 146 | 92 | 0.85 |
| 1" | 27 | 35 | 69.8 | 119 | 162 | 108 | 0.95 |
| 1.1/8" | 28.6 | 35 | 76 | 133 | 178 | 111 | 1.15 |
| 1.1/4" | 33.4 | 41.5 | 95 | 152 | 197 | 133 | 1.35 |
| 1.3/8" | 38 | 47.6 | 105 | 175 | 228 | 152 | 2.25 |
| 1.1/2" | 41.3 | 52 | 114 | 197 | 254 | 165 | 3.2 |
| 1.5/8" | 42.9 | 58.6 | 120 | 197 | 264 | 165 | 3.5 |
| 1.3/4" | 50.1 | 56 | 127 | 228 | 280 | 178 | 5.4 |
| 1.7/8" | 60 | 66.6 | 133 | 240 | 310 | 191 | 6.6 |
| 2" | 62 | 69.8 | 140 | 257 | 330 | 203 | 7.2 |
| 2.1/4" | 60 | 78 | 165 | 270 | 445 | 216 | 13 |
| 2.1/2" | 64 | 84 | 178 | 305 | 490 | 241 | 14 |
| 2.3/4" | 70 | 86 | 180 | 310 | 435 | 273 | 17 |
