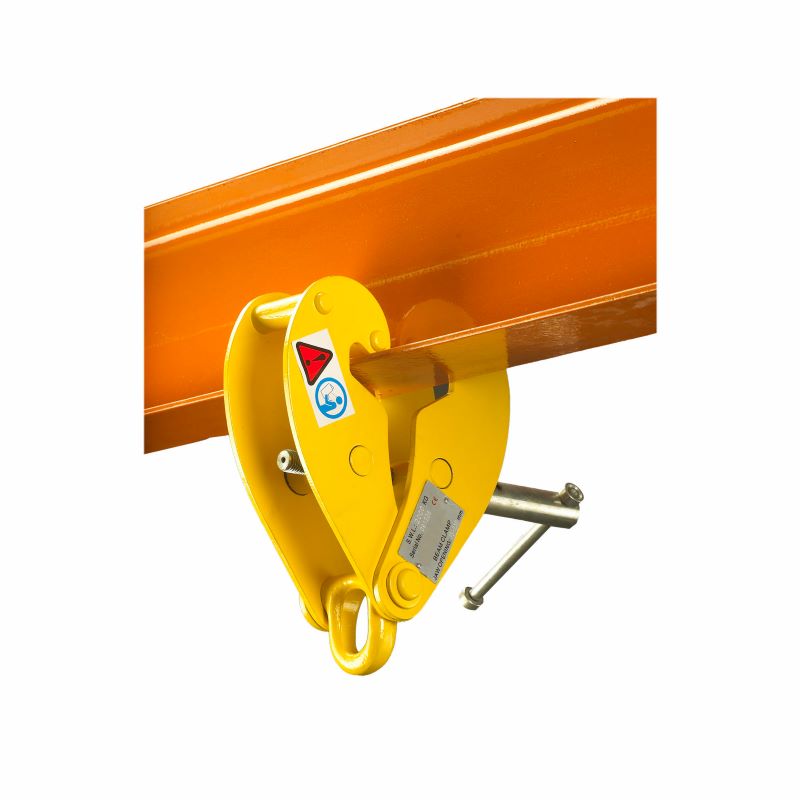

beam clamp with small shackle 改

Beam Clamp YS Type

Highly flexible for lifting and pulling.

Product Details

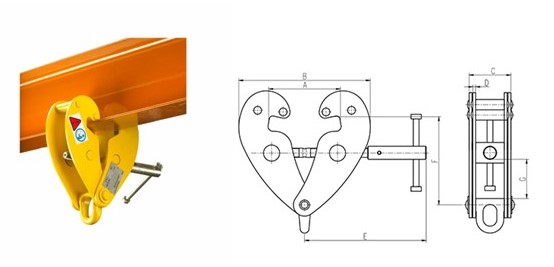

MODEL	Capacity Load T	Test Load T	I-beam width range MM	A Max	B		C	D	E	F		Min G	Net weight KG
MODEL	Capacity Load T	Test Load T	I-beam width range MM	A Max	Min.	Max.	C	D	E	Min.	Max.	Min G	Net weight KG
YS-1	1	1.5	75-220	270	185	370	80	5	220	90	165	25	3.8
YS-2	2	3	75-220	270	185	370	85	6	220	90	165	25	5
YS-3	3	4.5	80-320	350	225	500	117	8	265	140	225	45	9
YS-5	5	7.5	80-320	350	225	500	125	10	265	140	225	45	11
YS-10	10	15	90-320	365	255	510	158	12	280	170	235	50	16

Highly flexible-for lifting, pulling.
Shackle suspension point.
It can be used within angle of 15 degree, no reduction in load.
Multidirectional adjusting screw spindle for easy attachment and safe and secure grip.
Wide beam flange adjustment range.
Ensure that the clamp is fitted correctly over the center of gravity of the item being lifted and will not be subjected to side loading.
