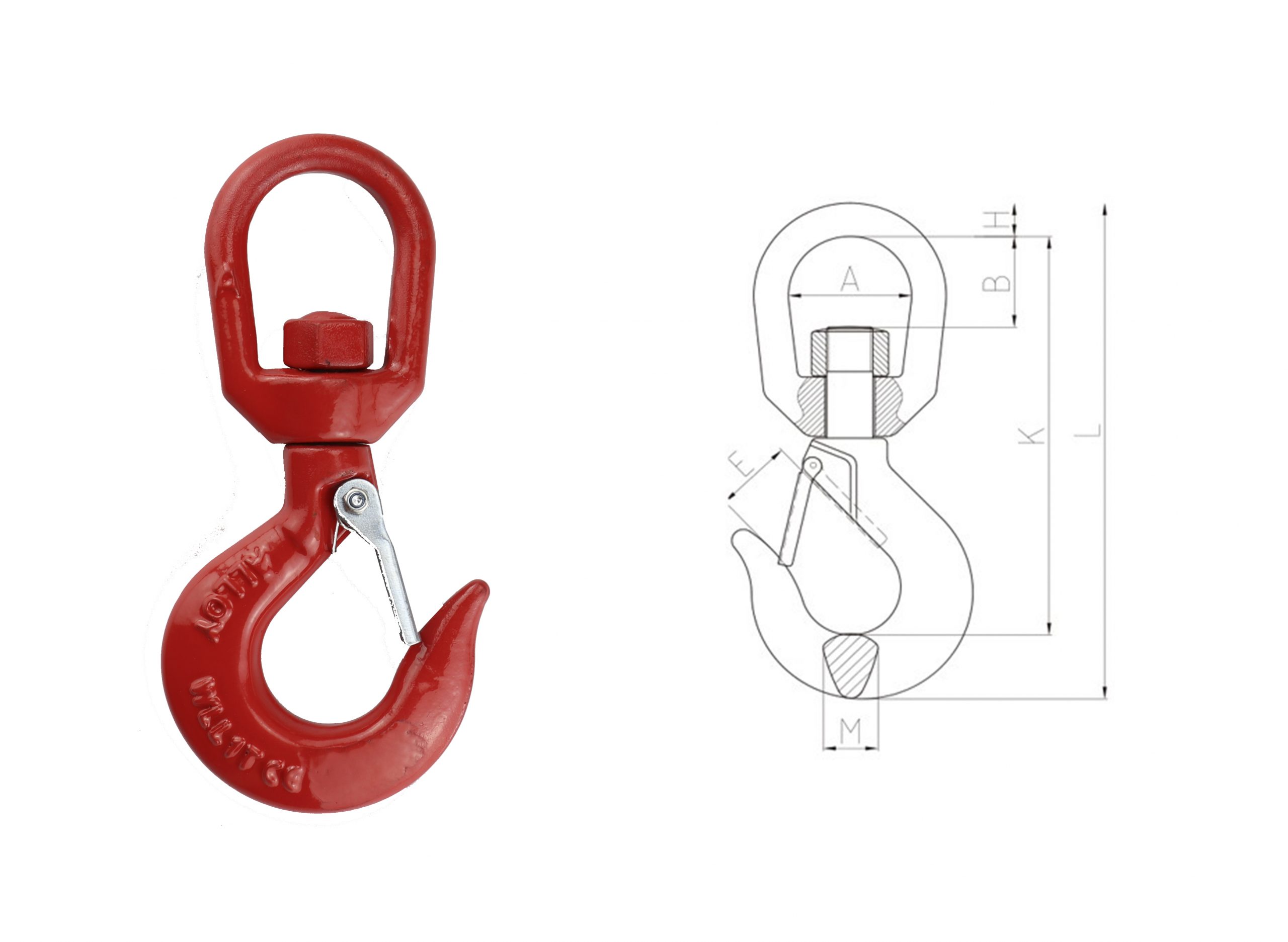

| ITEM NO. | WEIGHT (kg) | ALLOY | CARBON | A±1 | B±2 | E±2 | H±0.6 | K±4 | L±5 | M±1 | ||
| WLL (T) | B.L (T) | WLL (T) | B.L (T) | |||||||||
| A0.75T/C0.5T | 0.3 | 0.75 | 3.375 | 0.5 | 2.5 | 32 | 22.5 | 17 | 9 | 110 | 137 | 15 |
| A1T/C0.75T | 0.34 | 1 | 4.5 | 0.75 | 3.75 | 32 | 22.5 | 17 | 9 | 108 | 136 | 16 |
| A1.5T/C1T | 0.64 | 1.5 | 6.75 | 1 | 5 | 37.5 | 29.5 | 22.5 | 12 | 130 | 163.5 | 17.5 |
| A2T/C1.5T | 1.05 | 2 | 9 | 1.5 | 7.5 | 42.5 | 33 | 21.5 | 15.8 | 150 | 192 | 21 |
| A3T/C2T | 1.24 | 3 | 13.5 | 2 | 10 | 42.5 | 33 | 26 | 15.8 | 163 | 209 | 23 |
| A5T/C3T | 3.98 | 5 | 22.5 | 3 | 15 | 48 | 39 | 32.5 | 18 | 191 | 246 | 33 |
| A7T/C5T | 4 | 7 | 31.5 | 5 | 25 | 64 | 53 | 43 | 21.5 | 243.5 | 313 | 34 |
| A11T/C7.5T | 7.09 | 11 | 49.5 | 7.5 | 37.5 | 68 | 53 | 49.5 | 26 | 277 | 364 | 41.5 |
| A15T/C10T | 12.77 | 15 | 67.5 | 10 | 50 | 79 | 62 | 54.5 | 32 | 332 | 431 | 55.7 |
| A22T/C15T | 24.5 | 22 | 99 | 15 | 75 | 105 | 108 | 87 | 40 | 427 | 543 | 70 |
| A30T/C20T | 34.5 | 30 | 135 | 20 | 100 | 105 | 96 | 97.5 | 40 | 465 | 596 | 76.2 |
1.Carbon steel and alloy steel.
2.Forged - Quenched and Tempered.
3.100% magnetic crack detection.
4.Strict breaking test.
5.Surface treatment: powder coated.
Conform to Federal Specification RR-C-271D.
Hot dip galvanized.
Conform to Federal Specification RR-C-271D.
Hot dip galvanized.
Conform to Federal Specification RR-C-271D.
Hot dip galvanized.
Super carbon steel and alloy steel.
Quenched and Tempered.
