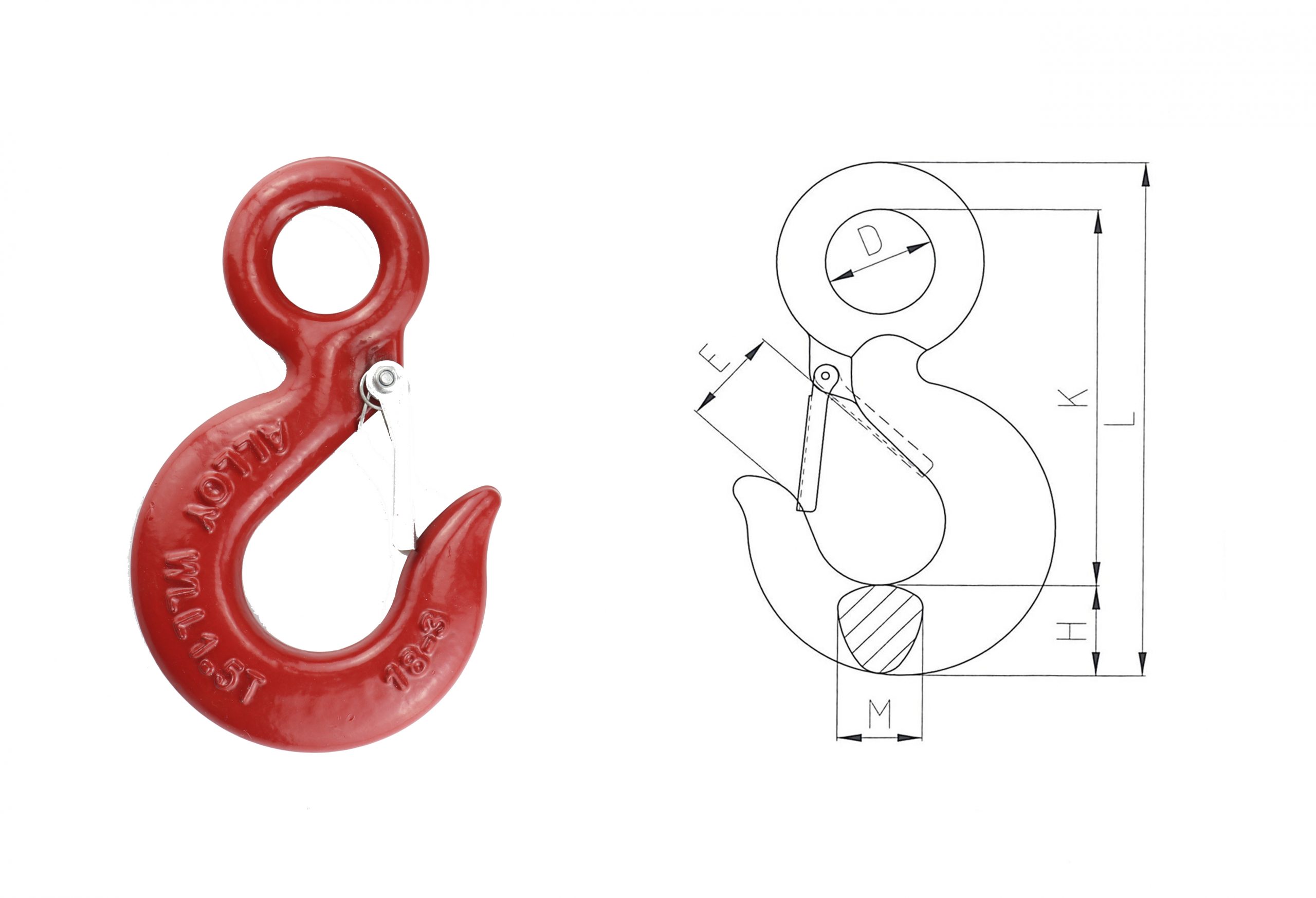

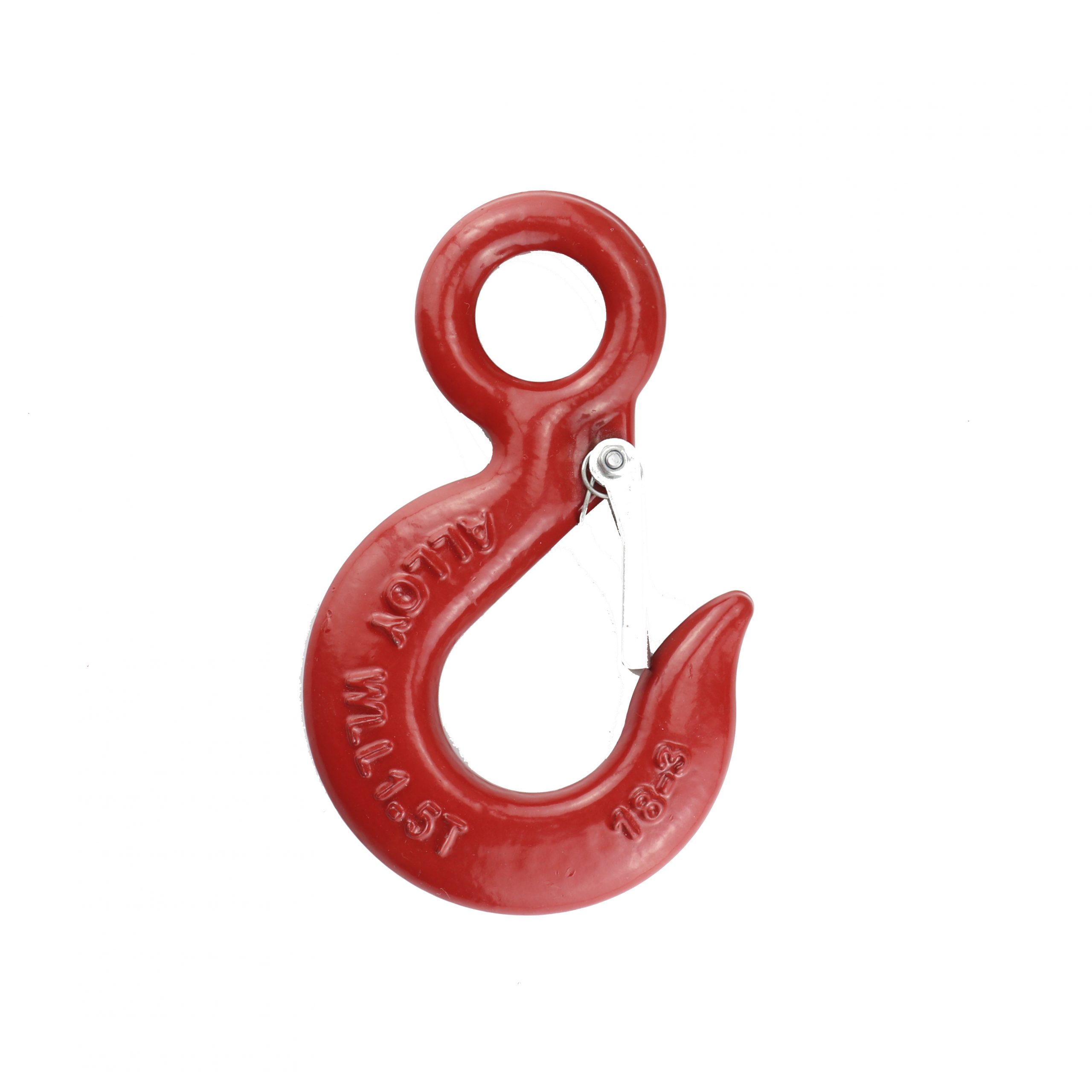

| ITEM NO. | WEIGHT (kg) | ALLOY | CARBON | D±1 | E±2 | H±1.5 | K±2.5 | L±3 | M±1.5 | ||
| WLL (T) | B.L (T) | WLL (T) | B.L (T) | ||||||||
| A0.75T/C0.5T | 0.21 | 0.75 | 3.75 | 0.5 | 2.5 | 16.5 | 18 | 17 | 72 | 97 | 16 |
| A1T/C0.75T | 0.27 | 1 | 5 | 0.75 | 3.75 | 19 | 22 | 20.5 | 82 | 112 | 16 |
| A1.5T/C1T | 0.4 | 1.5 | 7.5 | 1 | 5 | 23 | 24.5 | 21.5 | 94 | 126 | 17.5 |
| A2T/C1.5T | 0.6 | 2 | 10 | 1.5 | 7.5 | 28 | 25 | 26 | 104.5 | 142 | 21 |
| A3T/C2T | 0.84 | 3 | 15 | 2 | 10 | 31 | 27 | 28 | 120 | 163 | 23 |
| A5T/C3T | 1.81 | 5 | 25 | 3 | 15 | 39 | 35.5 | 40 | 146 | 203 | 33 |
| A7T/C5T | 3.35 | 7 | 35 | 5 | 25 | 51 | 44 | 45 | 187.5 | 255 | 38 |
| A11T/C7.5T | 6.1 | 11 | 55 | 7.5 | 37.5 | 62 | 55 | 57 | 231.5 | 317 | 46 |
| A15T/C10T | 9.6 | 15 | 75 | 10 | 50 | 73 | 57 | 66 | 262 | 360 | 55 |
| A22T/C15T | 16 | 22 | 110 | 15 | 75 | 89 | 83 | 79.6 | 318 | 433 | 68.5 |
| A30T/C20T | 25.8 | 30 | 150 | 20 | 100 | 90 | 95 | 91 | 360 | 495.5 | 70 |
1.Carbon steel and alloy steel.
2.Forged - Quenched and Tempered.
3.100% magnetic crack detection.
4.Strict breaking test.
5.Surface treatment: powder coated.
Conform to Federal Specification RR-C-271D.
Hot dip galvanized.
Conform to Federal Specification RR-C-271D.
Hot dip galvanized.
Conform to Federal Specification RR-C-271D.
Hot dip galvanized.
Super carbon steel and alloy steel.
Quenched and Tempered.
